C3019B Mobile Radio Universal Adapter | Six-Socket Screw-On Connector
Product Description

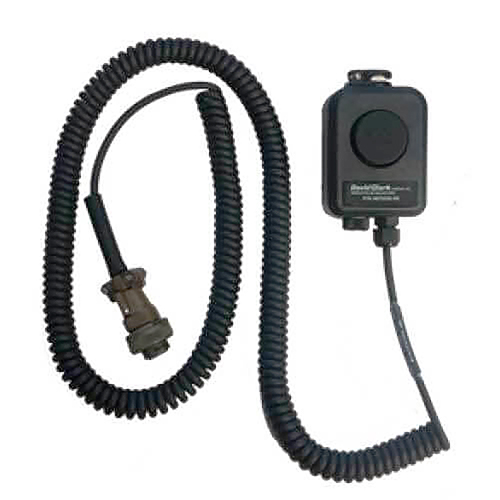

The Model C3019B utility radio adapter provides interface between any David Clark series 3000 headset and a mobile radio system. This radio adapter is compatible with most mobile radios requiring amplified electret microphones*. The belt clip provides a convenient place for user's to access the push-to-talk (PTT) switch while allowing freedom of movement.
The C3019B requires a technician to wire a cable to the back of the radio at its accessories connector and the other end connects to the panel mount connector.
*In order to properly install this adapter, the following parts will be needed: (18352G-16) connector kit for bulkhead mounting, (09271P-34HA000) 6-conductor shielded cable (per foot) or equal, (13238P-01) protective cap (Optional).
Features
- Large, durable PTT switch
- Six-socket screw-on connector prevent unintentional disconnects
- Detented listen level control
- Sturdy belt clip
- 15-foot rugged RFI shielded coil cord
- Plugs into existing C3019 installation
- Environmental protection flip cover for jack connector
- C3019B is not interchangable with exiting C3019A installations as the connector and vehicle wiring requirements are different
*Not compatible with radio which do not provide DC bias power
Specifications
No product specifications currently available.
Product Codes
- Mfr Part No:18667G-48
- EDMO #:C3019B
- Brand:DAVID CLARK COMPANY
- Category:Headsets & Intercoms
