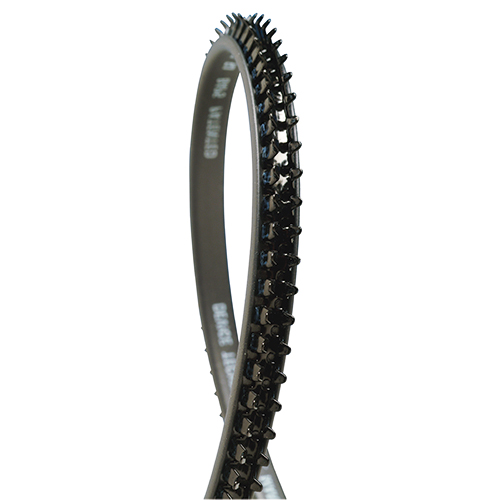

SpringFast® BAP Series Grommet Edging | Black, 25 ft Reel, 0.113–0.130 in Panel Thickness

Product Description

Spring-Fast® BAP Flexi wire protection Grommet series has greater gripping strength in severe shack and vibration environments with 4-axis flexibility. It also has a low profile while offering superior resistance to abrasion and chemicals while a soft, polymer cushion provides protection for the wires and cables.

Part (EDMO# BAP60025ER) fits panels with a thickness from 0.113–0.130 in (2.9–3.3 mm).

Specifications

• Length:
  25 ft Reel
• Width:
  0.28 in (6.8 mm)
• Sheet Thickness:
  0.113–0.130 in (2.9–3.3 mm), 8 Gauge
• Axis Conformity:
  Multi
• Vicat Softening Point per ASTM DO1525 Rate B:
  TPE Cushion: ISO306 230ºF (110ºC)
• Operating Temperature:
  -40°F to 185°F (-40°C to 85°C)
• Dielectric Strength:
  1,500 Volts 60 Hz per NASM22529, Section 3.2.1
• Substrate:
  Type 304 Stainless Steel
• Taber Abrasion Resistance:
  TPE Cushion: Per D1044
• Finish:
  TPE Cushion Black
• Salt Spray Hours:
  2,000 hr, ASTM B117. MIL-STD-202, Method 301
• Random Shock and Vibration:
  MIL-STD-1344
• Flammability:
  UL94 V-0 (File No. E113553 NZMT2) MIL-STD-202F FAR 25.853A Telcordia GR-63-CORE

Product Codes

• Mfr Part No
  BAP6-0025-ER0201
