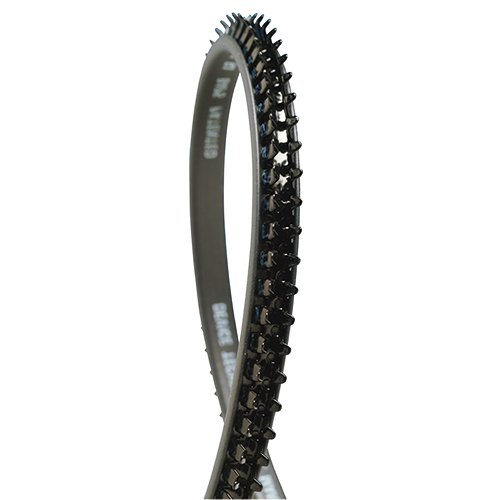

SpringFast® BAP Series Grommet Edging | Black, 100 ft Reel, 0.055–0.069 in Panel Thickness

SpringFast® BAP Series Grommet Edging | Black, 100 ft Reel, 0.055–0.069 in Panel Thickness

DEVICE TECHNOLOGIES

Call For Pricing
Available to order
EDMO # BAP3-0100
MFR Part # BAP3-0100-ER0201
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Spring-Fast® BAP Flexi wire protection Grommet series has greater gripping strength in severe shack and vibration environments with 4-axis flexibility. It also has a low profile while offering superior resistance to abrasion and chemicals while a soft, polymer cushion provides protection for the wires and cables.

Part (EDMO# BAP3-0100) fits panels with a thickness from 0.055–0.069 in (1.4–1.7 mm).

Features

  • High corrosion resistance
  • UL94 V-0 flammability rating
  • Superior dielectric strength
  • High shock and vibration resistance to rms G 41.7
  • Multi-axis flexibility for rounded inside and outside corners
  • Continuous edge protection on flanged holes

Specifications

  • Length:
    100 ft Reel
  • Width:
    0.19 in (4.8 mm)
  • Sheet Thickness:
    0.055–0.069 in (1.4–1.7 mm), 15–14 Gauge
  • Axis Conformity:
    Multi
  • Vicat Softening Point per ASTM DO1525 Rate B:
    TPE Cushion: ISO306 230ºF (110ºC)
  • Operating Temperature:
    -40°F to 185°F (-40°C to 85°C)
  • Dielectric Strength:
    1,500 Volts 60 Hz per NASM22529, Section 3.2.1
  • Substrate:
    Type 304 Stainless Steel
  • Taber Abrasion Resistance:
    TPE Cushion: Per D1044
  • Finish:
    TPE Cushion Black
  • Salt Spray Hours:
    2,000 hr, ASTM B117. MIL-STD-202, Method 301
  • Random Shock and Vibration:
    MIL-STD-1344
  • Flammability:
    UL94 V-0 (File No. E113553 NZMT2) MIL-STD-202F FAR 25.853A Telcordia GR-63-CORE

Related Products

Product Codes

  • Mfr Part No
    BAP3-0100-ER0201
  • SAE
    AS9104
