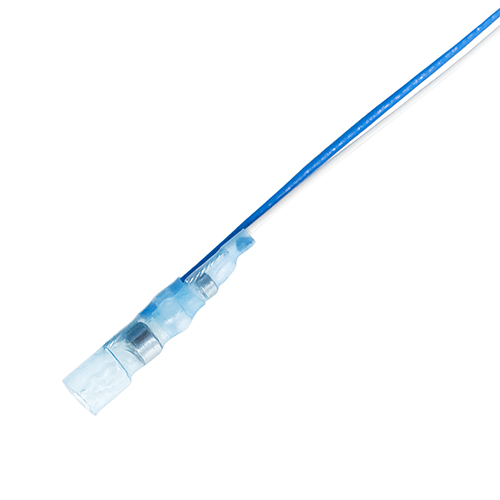

B-40 Coax Solder Terminal Sleeve | 22 AWG
Product Description
B-40 coaxial solder terminal sleeves provide easy termination of the primary conductor and the braided shield of coaxial cables. These solder terminals offer insulation and strain relief while providing an economical method for attaching the connector of coax cable to connector terminals, printed wire assemblies, and solderless wrap terminals.
This B-40 solder sleeve (EDMO# B-040-22-N) fits 22 AWG gauge coax cables that have a jacket diameter of 0.175 inches. *see datasheet
Features
- Ideal for terminating coax cables
- 125°C temperature rating
- Provides insulation and strain relief
- Works with tin- or silver-plated shield materials
Specifications
Wire Gauge:
22 AWG
Overall Length:
1.180 in (30 mm)
Jacket Diameter:
0.175 in (4.4 mm), expanded
0.065 in (0.065 mm), minimum
Braid Diameter:
0.110 in (2.8 mm), expanded
0.060 in (1.5 mm), minimum
Temperature Range:
-55°C to 150°C
Insulation Sleeve:
Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride
Insulation Color:
transparent blue
Solder Preforms (with flux):
Solder: TYPE Sn63 per ANSI J-STD-006
Flux: TYPE ROL1 per ANSI J-STD-004
Meltable Rings:
Thermally stabilized thermoplastic
Conductor Lead:
MIL-W-22759/32-GA-9, AWG “GA” ETFE insulated, stranded tin plated copper
Conductor Lead Color:
white
Ground Lead:
MIL-W-22759/32-GA-6, AWG “GA” ETFE insulated, stranded tin plated copper
Ground Lead Color:
blue
Product Codes
- Mfr Part No:B-040-22-N
- EDMO #:B-040-22-N
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
