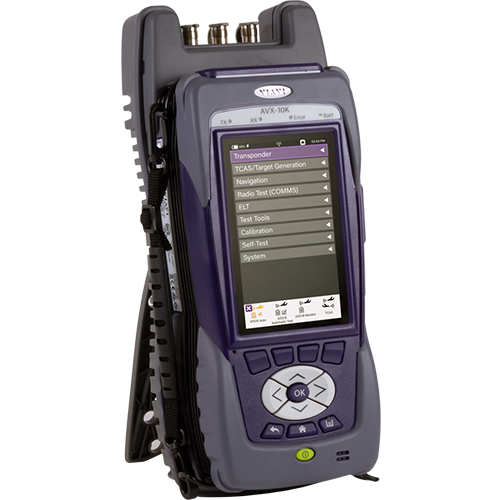

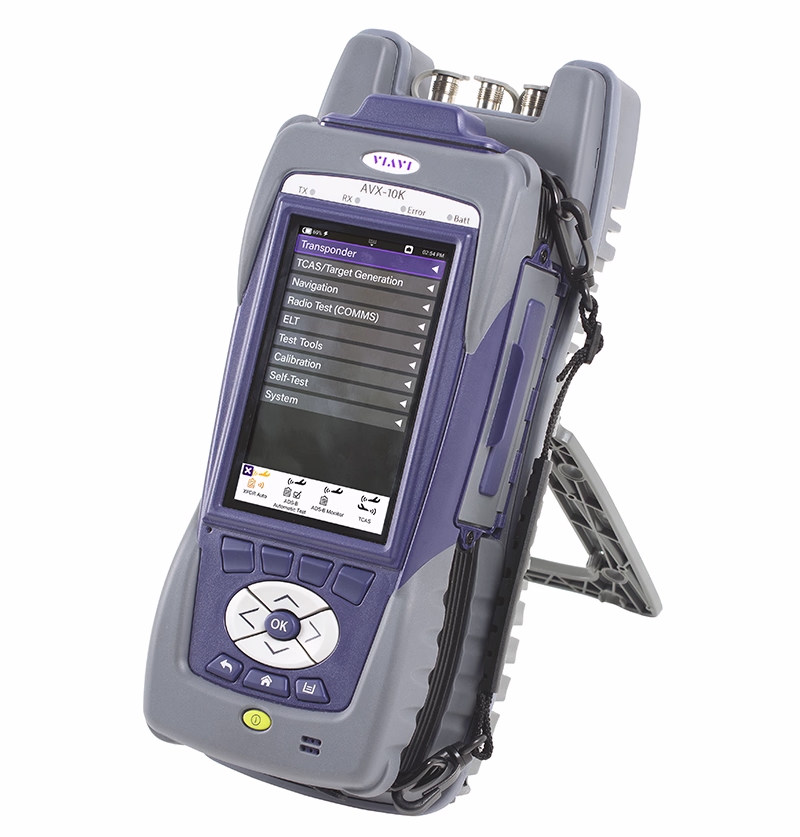

AVX-10K Flight Line Test Set

Product Description

The AVX-10K is a comprehensive flight line test solution providing today's Avionics Technician with an easy to use instrument for many maintenance needs. From a quick airborne system auto-test to an in-depth troubleshooting tool, testing can conveniently be done around the aircraft or in the cockpit from the touchscreen display or using your mobile device. Easy set-up, quick testing and reporting transferable via USB, Ethernet, and wireless done from a modern user interface, or the VIAVI Solutions Mobile Tech App.

Building on nearly 50 years of providing superior avionics test sets, the AVX-10K is a compact, durable tester capable of providing a wide range of quick airborne system auto-tests and in-depth troubleshooting using software specific applications.

Version (EDMO# AVX10KFLTS) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals.

Specifications

• Weight:
  6.5 lbs. (2.94 kg)
• Dimensions:
  12 x 5.3 x 3.75 in (30.48 x 13.5 x 9.5 cm)
• Battery Life:
  4 hrs continuous, 8 hrs typical
• Power:
  100 - 250 VAC, 1.5 A max, 47-63hz
• Operating Temp:
  -4 to 131°F (-20 to 55°C)
• Storage Temp:
  -22 to 159.8°F ( -30 to 71°C)
• Relative Humidity:
  95% (±5%) from 41 to 86°F (5 to 30°C) 75% (±5%) from 86 to 104°F (30 to 40°C) 45% (±5%) from 104 to 131°F (40 to 55°C)
• Altitude:
  4,800 m
• EMC:
  EN 61326
• Safety Compliance:
  UL-61010B-1, EN 61010-1, CSA 22.2 No 61010-1

Product Codes

• Mfr Part No
  AVX-10K-FLTS
• SCHEDULE B CODE
  9030.40.0000
