Military AVX-10K Flight Line Test Set | COMM/NAV/SVLC Package
Product Description

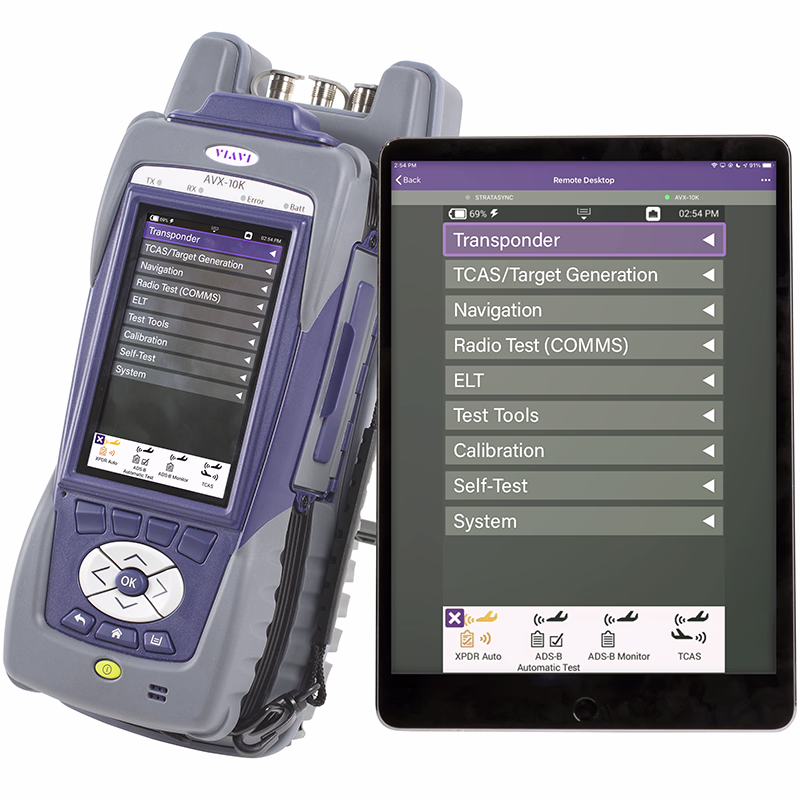

The AVX-10K is a comprehensive flight line test solution providing Maintenance Technicians with an easy-to-use all-in-one instrument for testing multiple systems. Built-in auto tests and the ability to create guided tests that replicate existing procedures will save time and provide consistent, repeatable test results.

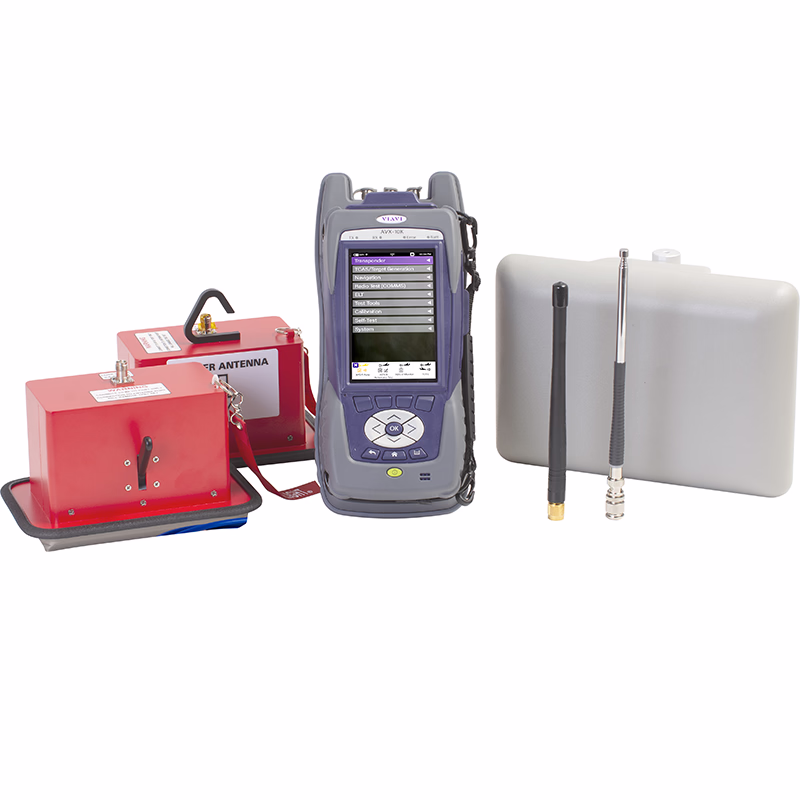

Version (EDMO# AVX10K-MIL) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals, Hard Transit Carrying Case, Adapter Kit Short/Load, VOR/ILS Antenna, Marker Beacon Antenna, 6' Coax Cable, RF Flat Panel Antenna with 1' Cable, UC-584 & UC-584S coupler with two 25' cables, Attenuator, Software Options: Transponder Modes (A,C,S), ADS-B in/out/GICB/Target Gen/FIS-B, DME, Navigation (ILS/MB/VOR), ELT 121.5/243/406 MHz, Radio Test AM/FM (Comms), TACAN, E-TCAS, XPDR Military Modes 1/2/3, and Secure (Wireless disabled) Mode.
Features
- VSWR/DTF Antenna and Coax Testing
- Cable Loss Measurements
- AM/FM Transceivers
- Over-the-Air (RSSI) or direct connect testing
- Guided Test
- TACAN and DME Interrogator Test
- ILS (Localizer/Glideslope/Marker Beacon)
- 121.5/243/406 MHz ELT
- Auto pilot test
- Automated transponder testing
- Automated ADS-B surface/air testing
- 5 simulated ADS-B/ADS-R/TIS-B traffic targets
- Standard and user-programmable TCAS scenarios
- Over-the-Air, direct, or coupled testing
- Replaces Multiple Test Sets: IFR4000, IFR4000AR, IFR6000, IFR6015, 3515 for Airborne COMM’s Testing including scripting capability
Specifications
Weight:
6.5 lb
Dimensions:
5.3 x 3.75 x 12 in.
Power:
100 - 250 VAC, 1.5 A max, 47-63hz
Battery:
Up to 8 hours of operation
Operating Temperature:
-20° to 55°C (-4° to 131°F)
Product Codes
- Mfr Part No:22182232
- EDMO #:AVX10K-MIL
- Brand:VIAVI
- Category:Flight Line Test Sets
- SCHEDULE B CODE:9030.40.0000
