Military AVX-10K Flight Line Test Set | Surveillance Package

AVX10KSVLC

VIAVI

CALL FOR PRICING
Special order
EDMO#AVX-SVLC-M
MFR#22182230

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The AVX-10K is a comprehensive flight line test solution providing Maintenance Technicians with an easy-to-use all-in-one instrument for testing multiple systems. Built-in auto tests and the ability to create guided tests that replicate existing procedures will save time and provide consistent, repeatable test results.

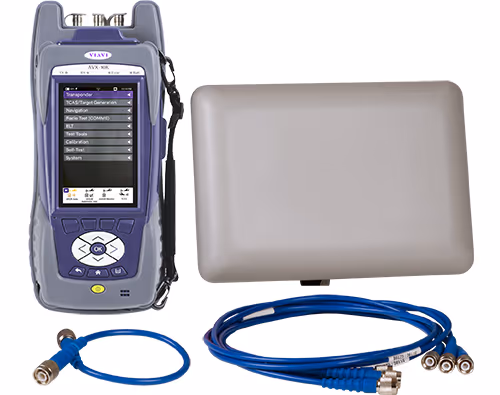

Version (EDMO# AVX-SVLC-M) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals, Hard Transit Carrying Case, Adapter Kit Short/Load, 6' Coax Cable, RF Flat Panel Antenna with 1' Cable, UC-584 Shield/Coupler with 25' Cable, Software Options: Transponder Modes (A,C,S), ADS-B in/out/GICB/Target Gen/FIS-B, TCAS I/II, DME, TACAN, E-TCAS, XPDR Military Modes 1/2/3, and Secure (Wireless disabled) Mode.

Features

  • VSWR/DTF Antenna and Coax Testing
  • Cable Loss Measurements
  • Automated transponder testing
  • Automated ADS-B surface/air testing
  • 5 simulated ADS-B/ADS-R/TIS-B traffic targets
  • Standard and user-programmable TCAS scenarios
  • Over-the-Air, direct, or coupled testing
  • Replaces Multiple Test Sets: IFR4000, IFR4000AR, IFR6000, IFR6015, 3515 for Airborne COMM’s Testing including scripting capability

Specifications

Weight:
6.5 lb

Dimensions:
5.3 x 3.75 x 12 in.

Power:
100 - 250 VAC, 1.5 A max, 47-63hz

Battery:
Up to 8 hours of operation

Operating Temperature:
-20° to 55°C (-4° to 131°F)

Product Codes

  • Mfr Part No:22182230
  • EDMO #:AVX-SVLC-M
  • Brand:VIAVI
  • Category:Flight Line Test Sets
  • SCHEDULE B CODE:9030.40.0000
