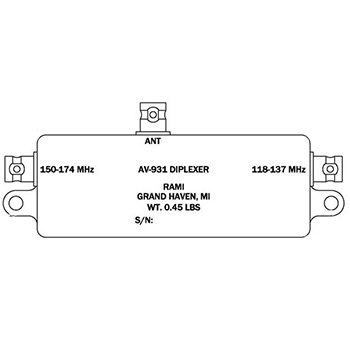

AV-931 Antenna Diplexer | 118–137 MHz & 150–174 MHz
Product Description
The AV-931 diplexer can be used with airborne multi-band FM transceivers. The device is designed to provide two separate frequency band ports (typically going to a multi-band transceiver) from a single port multi-band antenna.
Features
- Provides two separate frequency band ports from a single port multi-band antenna
- 118–137 MHz & 150–174 MHz frequency ranges
- 50 Ω impedance
- BNC female connector
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Weight:
0.45 lbs
Frequency:
Port 1: Antenna
Port 2: Radio 118–137 MHz
Port 3: Radio 150–174 MHz
Impedance:
50 Ω
VSWR:
1.5:1
Insertion Loss:
Less than .7 dB
Isolation:
Greater than 30 dB
Connectors:
BNC Female
RF Power Capacity:
10 Watts
Color:
Black
Product Codes
- Mfr Part No:AV-931
- EDMO #:AV-931
- Brand:RAMI
- Category:Antennas & Couplers
