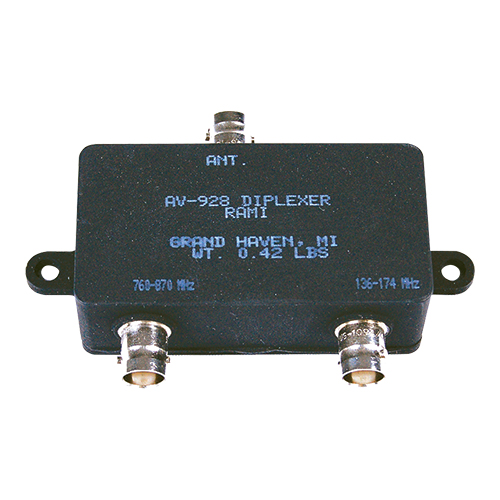

AV-928 Antenna Diplexer | 136–174 MHz & 760–870 MHz
Product Description
The AV-928 diplexer can be used with airborne multi-band FM transceivers. The device is designed to provide two separate frequency band ports (typically going to a multi-band transceiver) from a single port multi-band antenna.
Features
- Provides two separate frequency band ports from a single port multi-band antenna
- 136–174 MHz & 760–870 MHz frequency ranges
- 50 Ω impedance
- BNC female connector
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Weight:
0.42 lbs
Frequency:
Port 1: Antenna
Port 2: Radio 136–174 MHz
Port 3: Radio 760–870 MHz
Impedance:
50 Ω
VSWR:
1.3:1
Insertion Loss:
Less than .5 dB
Isolation:
Greater than 35 dB
Connectors:
BNC Female
RF Power Capacity:
10 Watts VHF, 5 Watts UHF
Color:
Black
Product Codes
- Mfr Part No:AV-928
- EDMO #:AV-928
- Brand:RAMI
- Category:Antennas & Couplers
