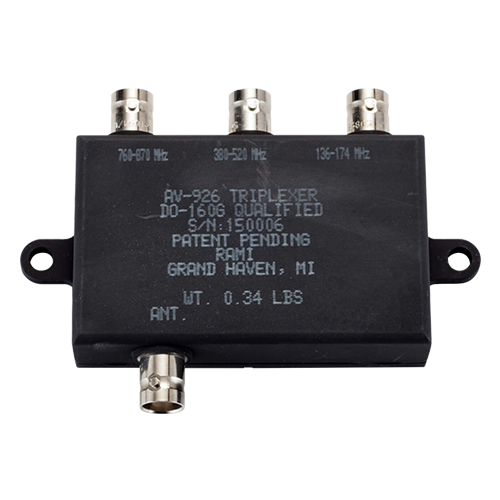

AV-926 Antenna Triplexer | 136–174 MHz, 380–520 MHz & 760–870 MHz, For AV-925 Blade Antenna
Product Description
The AV-926 triplexer can be used with airborne multiband FM transceivers. The device is designed to provide three separate frequency band ports (typically going to a multi-band transceiver) from a single port multi-band antenna.
Features
- FM airborne communications
- Multi-band frequency (Non-TSO)
- Installation on helicopters and high speed fixed wing aircraft
- BNC female connector
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Frequency:
Port 1 Antenna
Port 2 Radio 136-174 MHz
Port 3 Radio 380-520 MHz
Port 4 Radio 760-870 MHz
Impedance:
50 Ω
VSWR:
1.25:1
Insertion Loss:
< 0.5 dB
Isolation:
> 35 dB
Connector:
BNC Female
RF Power Capacity:
VHF: 10 W
UHF: 5 W
Color:
Black
Product Codes
- Mfr Part No:AV-926
- EDMO #:AV-926
- Brand:RAMI
- Category:Antennas & Couplers
