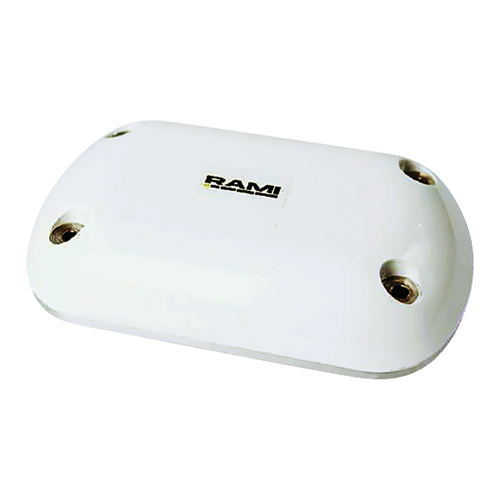

AV-801 WAAS GPS Antenna | 1575 MHz

Product Description

The AV-801 GPS antenna is designed specifically to meet FAA TSO-C190 specifications. Qualification testing includes meeting the requirements of RTCA DO-301 and DO-160G. The mounting footprint matches the standard ARINC found on many general aviation aircraft up to and including business jets.

Specifications

• Max Weight:
  5.0 oz
• Application:
  Most aircraft up to and including business jets
• Frequency:
  1575.42 ± 10.23 MHz
• VSWR:
  1.5:1 Maximum
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ohms Nominal
• Gain:
  26.5 – 30.5 dB
• DC Voltage:
  4.5 to 14.5 VDC
• DC Current:
  40mA Typ. / 60mA Max
• Noise Figure:
  2.5 dB
• Selectivity
  : 1315 – 1504.42 MHz -50 dB 1625.42 – 2000 MHz -50 dB
• Connector
  : TNC Female
• FAA Approval:
  TSO-C190

Product Codes

• Mfr Part No
  AV-801
• ECCN
  7A994
• PROAPP
  PT2530CE
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C190

Documentation

• RAMI Limited Lifetime Warranty
