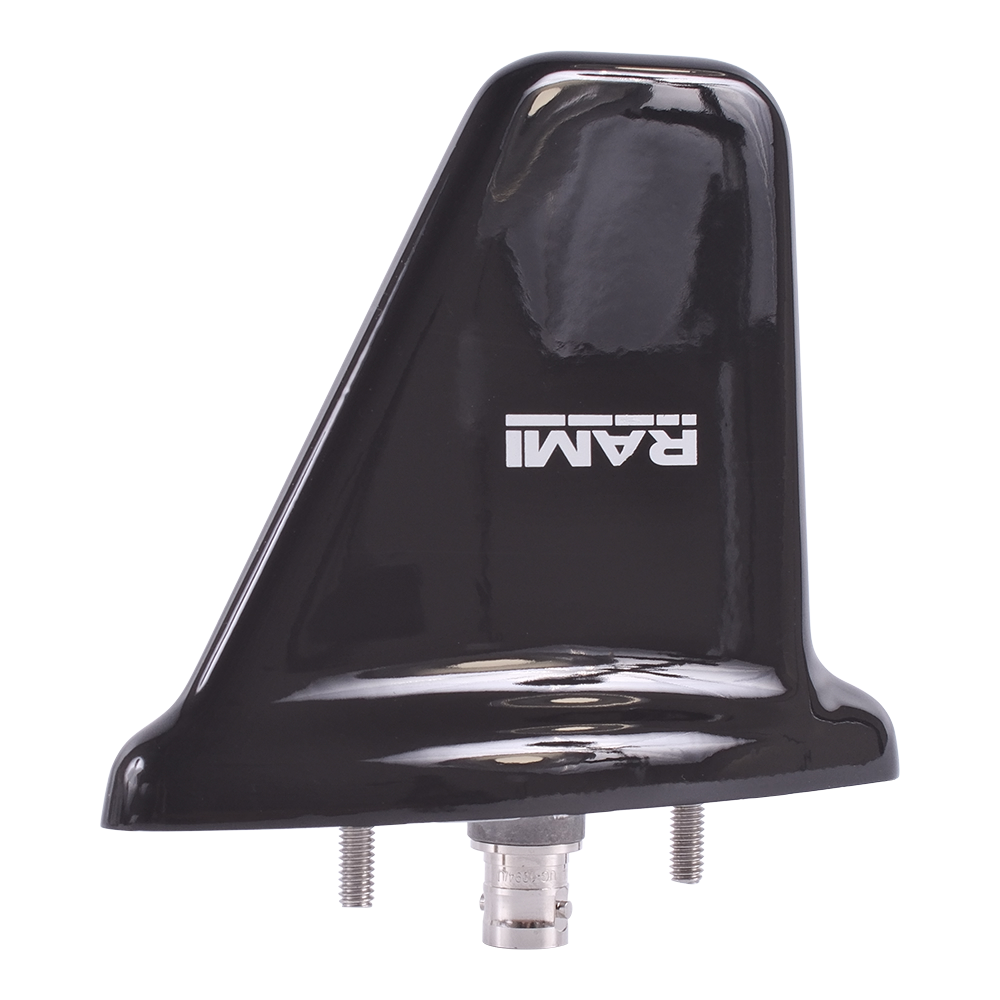

AV-74-1 Shadow Line DME Transponder Antenna | 960–1220 MHz, BNC Female Connector, Gloss Black

AV-74-1GB

RAMI

CALL FOR PRICING
Special order
EDMO#AV-74-1GB
MFR#AV-74-1GB

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The AV-74-1 is a broadband blade type antenna for transponder or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware.

The AV-74-1 is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105-16.

This AV-74-1 Shadow Line DME transponder antenna (EDMO# AV-74-1GB) comes with a gloss black finish.

Features

  • 960–1220 MHz frequency range

  • DME/Transponder

  • Omni-directional

  • Vertical polarization

  • BNC female connector

  • 2.5 kW peak RF power

  • Gloss black finish

  • Backed by the RAMI Limited Lifetime Warranty

Specifications

Weight:
13.6 oz

Height:
3.4 in

Frequency:
960–1220 MHz

Impedance:
50 Ohms Nominal

VSWR:
1.5:1 Maximum

Polarization:
Vertical

Pattern:
Omni-Directional

Connector:
BNC (Female)

RF Power Capacity:
2.5 kW Peak

Color:
Gloss Black

FAA Approvals:
TSO-C66c, TSO-C74c

Product Codes

  • Mfr Part No:AV-74-1GB
  • EDMO #:AV-74-1GB
  • Brand:RAMI
  • Category:Antennas & Couplers
  • SCHEDULE B CODE:8529.10.4000
