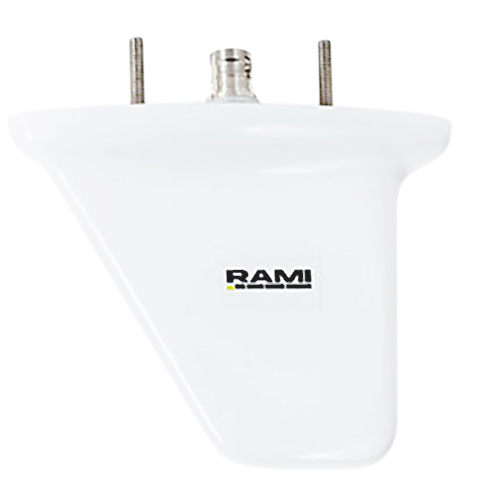

AV-74-1 DME Transponder Antenna | 960–1220 MHz
Product Description
The AV-74-1 is a broadband blade type antenna for transponder or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware.
The AV-74-1 is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105-16.
Features
- 960–1220 MHz frequency range
- DME/Transponder
- Omni-directional
- Vertical polarization
- BNC female connector
- 2.5 kW peak RF power
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Weight:
13.6 oz
Height:
3.4 in
Frequency:
960–1220 MHz
Impedance:
50 Ohms Nominal
VSWR:
1.5:1 Maximum
Polarization:
Vertical
Pattern:
Omni-Directional
Connector:
BNC (Female)
RF Power Capacity:
2.5 kW Peak
Color:
Gloss White
FAA Approvals:
TSO-C66c, TSO-C74c
Product Codes
- Mfr Part No:AV-74-1
- EDMO #:AV-74-1
- Brand:RAMI
- Category:Antennas & Couplers
- ECCN:7A994
- PROAPP:PT2530CE
- SCHEDULE B CODE:8529.10.4000
- TSO:C66c, C74c
