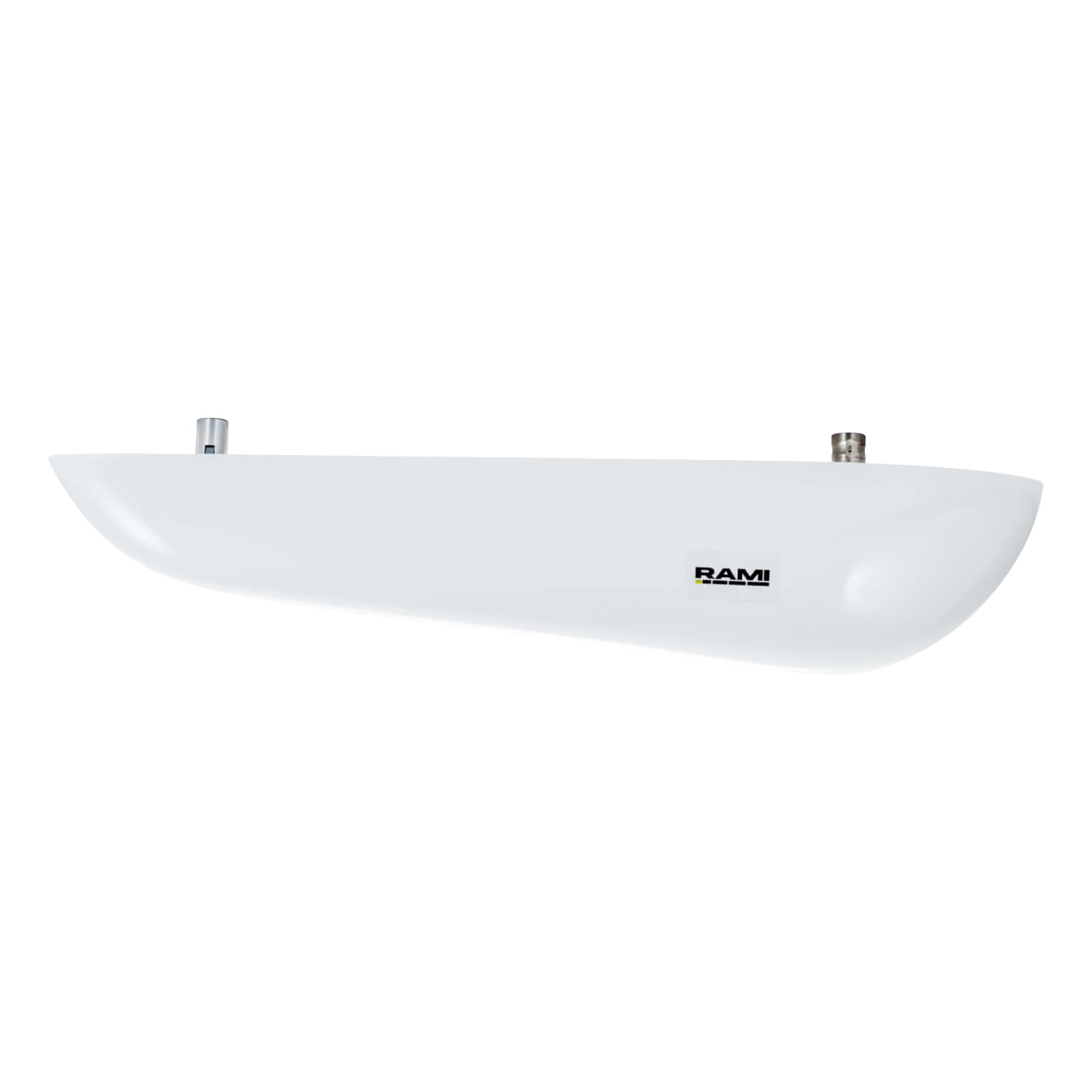

AV-64 Marker Beacon Antenna | 75 MHz
Product Description
The AV-64 is a boat type marker beacon antenna designed for very low drag. It is constructed of an acrylonitrite-styrene-acrylic (ASA) shell with the internal parts encapsulated in rigid urethane foam for mechanical and electrical stability. The white color allows for maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware.
The AV-64 antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.22 lbs @ 250 mph. This antenna is a direct replacement for the CI 102.
Features
- 75 MHz (receive only) frequency
- 50 Ω impedance
- BNC female connector
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Max Height:
2.2 in
Max. Weight:
0.5 lb
Frequency:
75 MHz
Impedance:
50 Ohms Nominal
VSWR:
1.4:1 Maximum
Connector:
BNC Female
RF Power Capacity:
Receive Only
FAA Approval:
TSO-C35d
Product Codes
- Mfr Part No:AV-64
- EDMO #:AV-64
- Brand:RAMI
- Category:Antennas & Couplers
