AV-585 Diplexer/Splitter | VOR/LOC/GS Outputs, 108–118 MHz & 328–336 MHz
Product Description

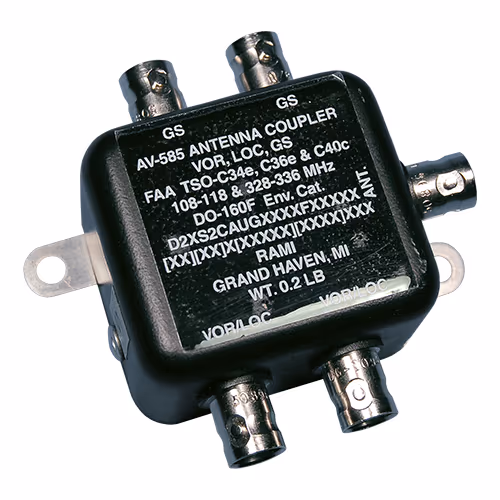

The AV-585 is a diplexer/splitter providing two VOR/LOC and two GS outputs from one VOR/LOC/GC antenna. It is a direct replacement for the CI-1125.
Features
- Provides 2 VOR/LOC & 2 GS outputs from antenna
- 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response
- 50 Ω impedance
- BNC female connector
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Weight:
3.2 oz
Frequency:
108 MHz to 118 MHz (VOR)
328 MHz to 336 MHz (GS)
VSWR:
1.5:1
Impedance:
50Ω
Insertion loss:
3.5 dB
Isolation:
20 dB
Connector:
BNC female
FAA Approvals:
TSO-C34e, TSO-C36e, TSO-C40a
Product Codes
- Mfr Part No:AV-585
- EDMO #:AV-585
- Brand:RAMI
- Category:Antennas & Couplers
- ECCN:7A994
- PROAPP:PT2530CE
- SCHEDULE B CODE:8526.10.0010
- TSO:C34e, c36e, C40c
