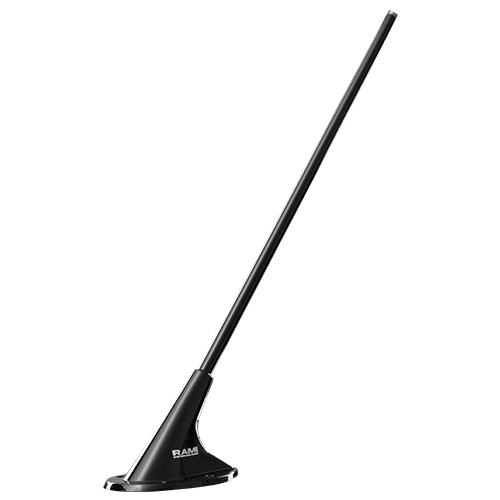

AV-529 Shadow Line VHF Communications Whip Antenna | 118–137 MHz, Gloss Black
Product Description
The AV-529 is designed for broadband communications (118-137 MHz). It has a die-cast aluminum base and a uniquely designed radiator encapsulated in a fiberglass whip. The antenna is supplied with a weather-sealing gasket and mounting hardware. The AV-529 antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 3.43 lb @ 250 mph. This antenna is a direct replacement for the CI-291.
This AV-529 Shadow Line VHF communications whip antenna (EDMO# AV-529GB) comes with a gloss black finish.
Features
- 118–137 MHz frequency ranges
- Vertical polarization
- Omni-directional pattern
- BNC female connector
- Gloss black finish
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Weight:
8 oz
Height:
22 in, maximum
Frequency:
118–137 MHz
Impedance:
50Ω, nominal
VSWR:
1.8:1, maximum
Polarization:
Vertical
Pattern:
Omni-directional
Connector:
BNC (Female)
RF Power Capacity:
25 Watts
Finish:
Gloss Black
FAA Approvals:
TSO-C37d, TSO-C38d
Product Codes
- Mfr Part No:AV-529GB
- EDMO #:AV-529GB
- Brand:RAMI
- SCHEDULE B CODE:8529.10.4000
