AV-30E Multi-Function Panel Display | 3in, Customizable Display, Experimental Aircraft

Product Description

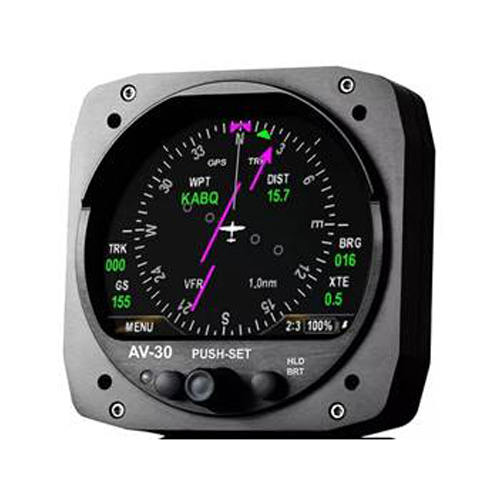

The AV-30 is a highly capable, fully digital, multi-mode instrument that mounts in the legacy 3⅛ inch round instrument panel cutout. It can be field configured as either an Attitude Indicator (AI) or a Direction Indicator (DG), contains an internal battery, and allows for a wide variety of pilot customization. In both operating modes, the pilot may select from a variety of visual styles that are intended to improve visual compatibility with legacy aircraft instrumentation and preserve the look-and-feel of older aircraft applications. A wide variety of supplemental functions, including audio envelope alerting, derived angle of attack presentation, g-load display, and more are provided. An internal battery allows operation for up to 2 hours in the event of aircraft power loss.

• When configured as an AI, primary attitude and slip are always displayed. The unused portions of the display area can be customized by the pilot to show a variety of textual and graphical data-overlay fields. Up to 3 pages may be customized by the pilot with a fourth dedicated fully decluttered page.
• When configured as a DG, non-slaved direction of flight or GPS track may be configured for display. Multiple display presentations can be selected by the pilot including a compass rose, GPS CDI, and GPS arc view. The unused portions of the display area can similarly be configured for a variety of textual data-overlays.

Version (EDMO# AV-30E) is designed for experimental aircraft applications *Approved for Part 23 aircraft with speeds of under 200Kts.

Specifications

• Weight:
  0.50 lb
• Dimensions:
  3.38 x 3.38 x 1.6 in.
• Input Voltage Nominal:
  +10 to +32 VDC
• Input Voltage Max:
  +60 VDC
• Input Power Nominal:
  6 Watts (0.5 Amps @ 12VDC)
• Input Power Max:
  12 Watts (1.0 Amps @ 12VDC)
• Required Circuit Breaker:
  2 Amp
• Operation on Battery:
  2 Hours Typ @ 20°C / 30 Minutes Min @ -20C
• Mounting Configuration:
  3 1/8” Round Instrument Hole Electrical Connector: 15 Pin Male D-Sub
• Pneumatic Connectors:
  1/4 in. OD Quick Connect
• Mounting:
  (4X) #6-32 Machine Screws
• Case Material:
  Billet Aluminum
• Operating Temp:
  -20°C to +55°C
• Diagonal Size:
  3” Circular
• Contrast Ratio:
  (Typical) 500
• Brightness:
  (Typical) 1000 cd/m2
• Viewing Angle Left/Right:
  60°
• Viewing Angle Up:
  45°
• Viewing Angle Down:
  10°
• Backlight Lifetime:
  (Typical) 50,000 Hrs

Product Codes

• Mfr Part No
  UAX-90051-01

Documentation

• AV-30 Installation Manual
