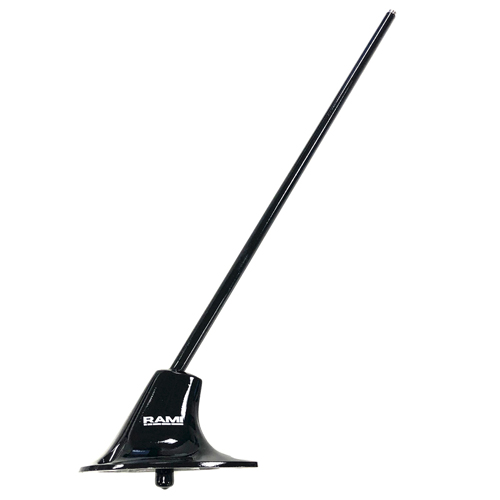

AV-300 Shadow Line ELT Rod Antenna | 121.5 MHz, 243 MHz, & 406 MHz, Gloss Black

AV-300GB

Product Description

The AV-300 ELT antenna is intended for use with a 406 MHz ELT (Emergency Locator Transmitter) for General Aviation. It is a passive three frequency fiberglass rod whip antenna, designed for low-speed aircraft (up to 350 knots). It has met DO-160G, Section 8, Category U requirements for robust vibration, and is qualified for installation on helicopters with unknown rotor frequencies.

This AV-300 Shadow Line ELT Antenna (EDMO# AV-300GB) comes in a gloss black finish.

Features

121.5 MHz, 243 MHz, and 406 MHz frequencies
Vertical polarization
Omni-directional pattern
BNC female connector
Gloss black finish
Backed by the RAMI Limited Lifetime Warranty

Specifications

Weight:
9 oz

Height:
14 in

Frequency:
121.5 MHz, 243 MHz, & 406 MHz

Impedance:
50Ω

VSWR:
121.5 MHz & 243 MHz: 2:1, max.
406 MHz: 1.5:1, max.

Polarization:
Vertical

Pattern:
Omni-directional

Connector:
BNC (female)

RF Power:
10 watts CW

Finish:
Gloss Black

Approvals:
TSO-C126a

Product Codes

Mfr Part No:AV-300GB
EDMO #:AV-300GB
Brand:RAMI
SCHEDULE B CODE:8529.10.4000
