AV-3 VHF Communications Vehicle Antenna | 108–512 MHz
Product Description

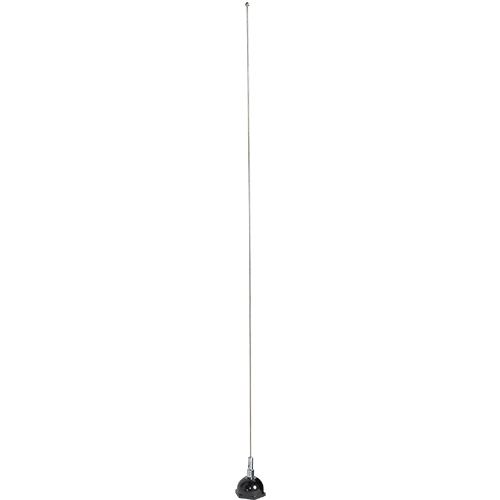

The AV-3 is a general aviation, low profile, snap-in mounting quarterwave antenna for use on ground vehicles. It has a solderless cable connection at the antenna and is supplied with 17 ft. of cable and a PL-529 connector. The antenna is field tunable by simply cutting the whip to the required length.
Features
- Designed for use on ground vehicles
- 108–512 MHz frequencies
- Vertical polarization
- Omnidirectional pattern
- 50Ω impedance
- PL-259 connector & 17 ft. of cable included
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Max Height:
27.5 in (field adjustable)
Application:
VHF Communications
Frequency:
108 – 512 MHz (Field Tunable)
Impedance:
50 Ohms Nominal
VSWR:
1.5:1 Maximum at Resonance
Polarization:
Vertical
Pattern:
Omnidirectional
Connector:
PL-259 Male
17 ft. of cable
RF Power Capacity:
100 Watts
Product Codes
- Mfr Part No:AV-3
- EDMO #:AV-3
- Brand:RAMI
- Category:Antennas & Couplers
