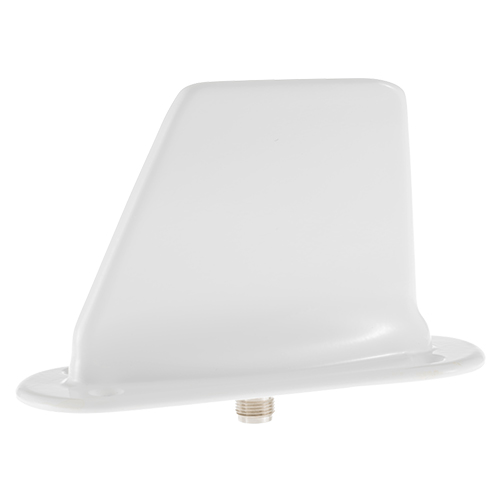

AV-265 Broadband Blade Antenna | 700–2650 MHz, 1030–1090 MHz, 3400–3700 MHz, 4800–5875 MHz
Product Description
The AV-265 is a broadband blade type antenna for applications such as Transponder, Cellular, 4G LTE, GSM, PCS, WIFI, and UMTS. The antenna housing is constructed of a Polyarylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating per MIL-C-5541. The antenna is supplied with an o-ring and mounting hardware. The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet.
Features
- Frequency range: 700–2650 MHz, 1030–1090 MHz, 3400–3700 MHz, 4800–5875 MHz (Non TSO Function)
- 50 Ω impedance
- Vertical polarization
- TNC female connector
- Gloss white finish
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Weight:
0.40 lb (6.4 oz)
Dimensions:
5.25 x 1.76 x 3.25 in
Application:
Transponder, Cellular, 4G LTE, GSM, PCS, WiFi, UMTS
Frequency:
700–2650 MHz, 1030–1090 MHz, 3400–3700 MHz, 4800–5875 MHz
Impedance:
50 Ω
VSWR:
2.5:1 Max at 700–2650 MHz
1.5:1 Max at 1030–1090 MHz
2.5:1 Max at 3400–3700 MHz
2.5:1 Max at 4800–5875 MHz
Polarization:
Vertical
Connector:
TNC Female
Pattern:
Omni-Directional
RF Power Handling:
100 Watts Continuous, 1000 Watts Peak
Color:
Gloss White, Skydrol Resistant Polyurethane Enamel
Product Codes
- Mfr Part No:AV-265
- EDMO #:AV-265
- Brand:RAMI
- Category:Antennas & Couplers
