AV-22 UHF DME Transponder Antenna | 1030–1090 MHz

AV-22 Transponder Antenna | 1030-1090 MHz

RAMI

Call For Pricing
In stock
EDMO # AV-22
MFR Part # AV-22
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

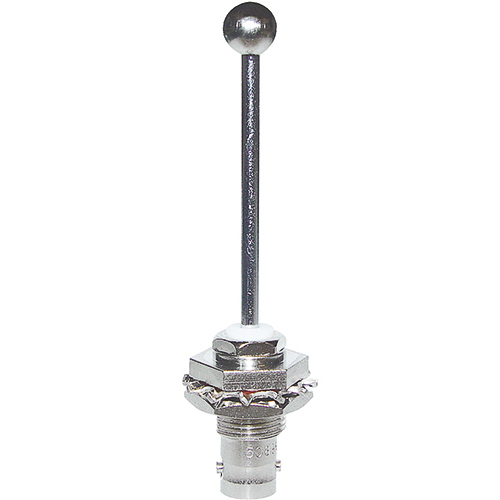

The AV-22 is a rod-style transponder antenna which utilizes a BNC connector that allows for a smaller mounting hole. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet. It has a drag force of 0.41 lbs @ 250 mph.

Features

  • 1030–1090 MHz frequency range
  • Vertical polarization
  • Omni-directional pattern
  • BNC female connector
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Weight:
    1 oz
  • Height:
    3 in
  • Frequency:
    1030–1090 MHz
  • Impedance:
    50 Ω Nominal
  • VSWR:
    1.3:1 Maximum
  • Polarization:
    Vertical
  • Pattern:
    Omni-Directional
  • Connector:
    BNC Female
  • RF Power Capacity:
    1 KW Peak Pulse @ 1% Duty Cycle
  • FAA Approval:
    TSO-C74c

Related Products

Product Codes

  • Mfr Part No
    AV-22
  • ECCN
    7A994
  • NSN
    5985-01-412-8377
  • PROAPP
    PT2530CE
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C74c
