AV-20S Multi-Function Panel Display | 2.25in Display

Product Description

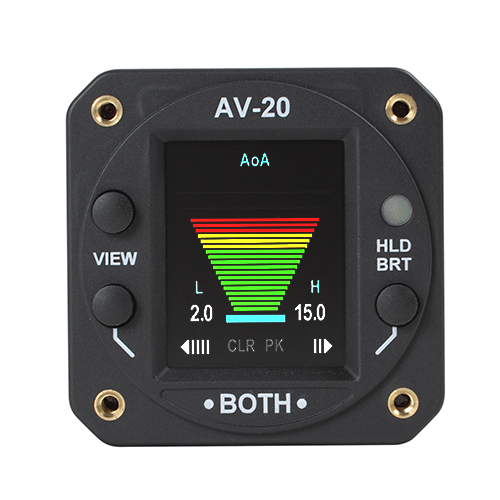

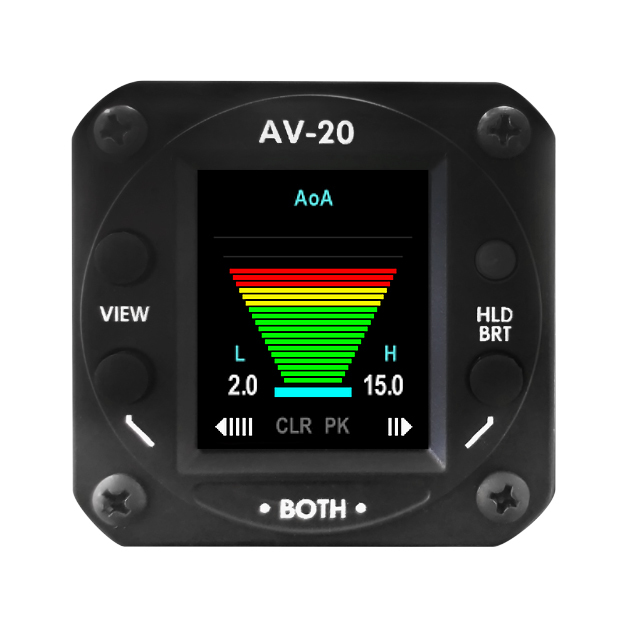

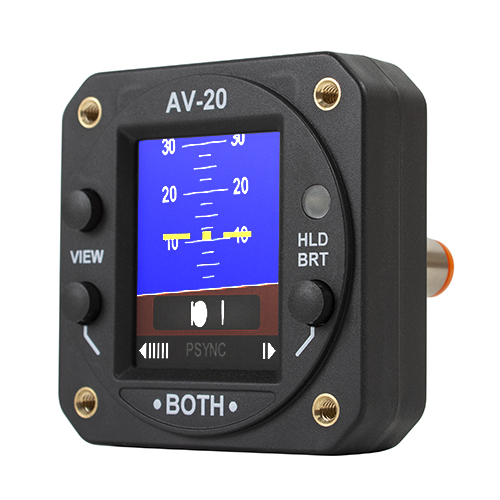

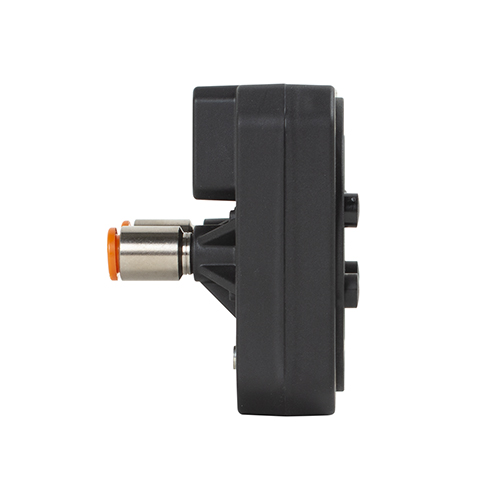

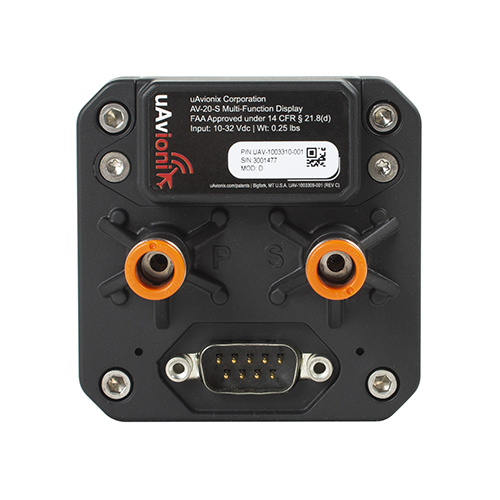

The AV-20S incorporates a full-color display, bezel-mounted light sensor for automatic display brightness, and an internal battery for operation in the event of power loss. The unit is designed to fit a standard 2¼ inch mounting hole and is approximately 2 inches deep. Dual ¼ inch quick-connect fittings are provided for pitot and static connections on the rear of the unit.

With a matte display, the AV-20S is visible in direct sunlight and automatically adjusts brightness to ambient light. Fly focused and aware with customizable audio alerts, the AV-20S’ many display configurations offer several audio triggers to alert of critical flight information. The AV-20S will alert visually and aurally if approaching a dangerous AoA—which is calculated by comparing the aircraft’s pitch, flight path, and G-loading.

*Approved for Part 23 aircraft with speeds of under 200Kts.

Specifications

• Weight
  : 0.25 lb
• Dimensions
  : 2.4 x 2.4 x 1.2 in.
• Display diagonal:
  1.8 in.
• Contrast ratio:
  500
• Brightness:
  1000 cd/m2
• Viewing angle:
  left/right: 60º up: 45º down:10º
• Backlight lifetime:
  50,000 Hrs
• Input voltage:
  +10 to +32 VDC (nominal)
• Input voltage max:
  +60 VDC
• Input power:
  3 Watts (0.25 Amps @ 12VDC) (nominal)
• Input power max:
  6 Watts (0.50 Amps @ 12VDC)
• Electrical connector:
  9 pin male D-Sub
• Pneumatic connectors:
  1/4 in. OD quick connect
• Mounting:
  (4x) #6-32 machine screws
• Case material:
  high impact ABS plastic
• Operating temperature:
  -20°C to +55°C

Product Codes

• Mfr Part No
  AV-20S
• ECCN
  7A994
• SCHEDULE B CODE
  8803.10.0010

Documentation

• AV-20S Installation Guide
