AV-20E Multi-Function Panel Display | 2.25in Display, TailBeaconX Interface
Product Description

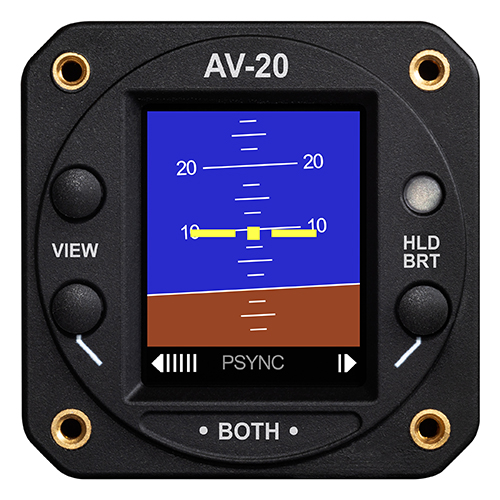

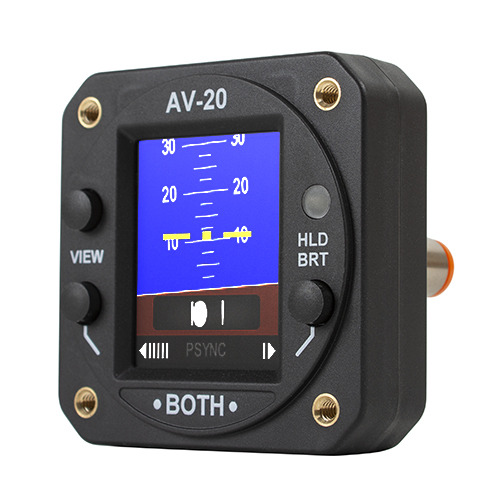

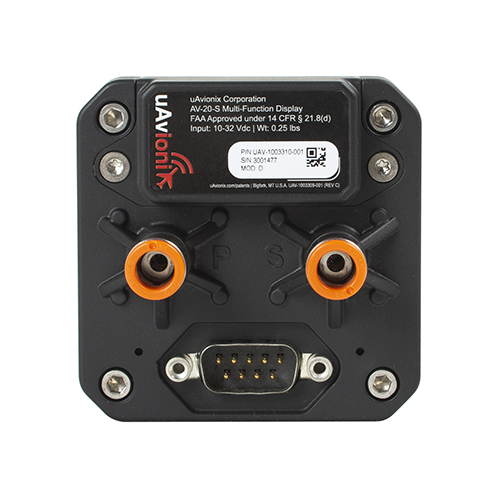

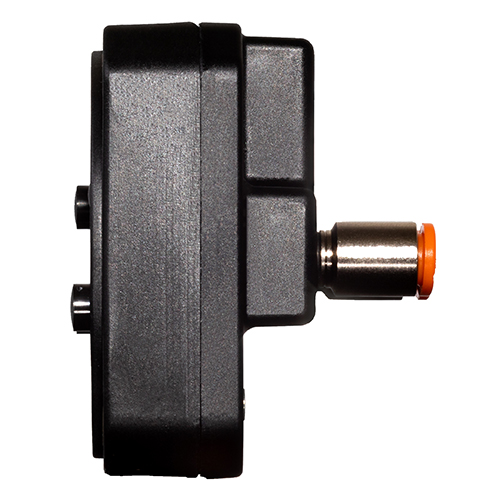

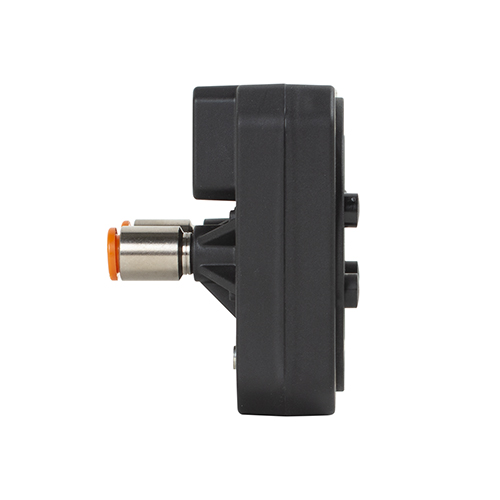

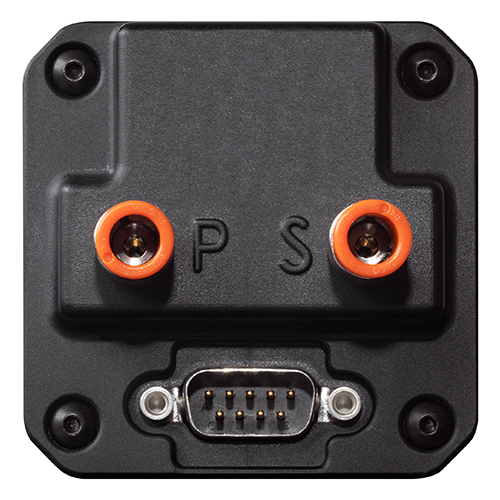

The AV-20E incorporates a full-color display, bezel-mounted light sensor for automatic display brightness, and an internal battery for operation in the event of power loss. The unit is designed to fit a standard 2¼ inch mounting hole and is approximately 2 inches deep. Dual ¼ inch quick-connect fittings are provided for pitot and static connections on the rear of the unit.

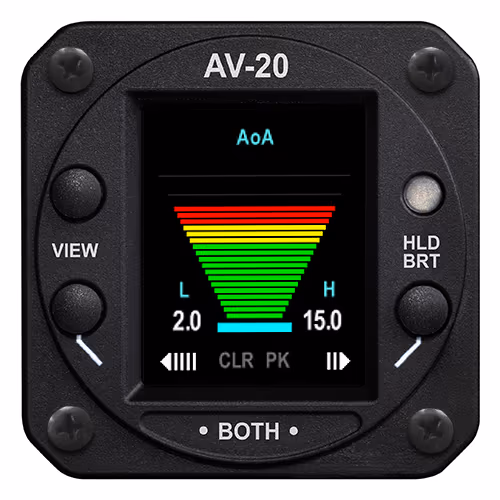

With a matte display, the AV-20E is visible in direct sunlight and automatically adjusts brightness to ambient light. Fly focused and aware with customizable audio alerts, the AV-20E’s many display configurations offer several audio triggers to alert of critical flight information. The AV-20E will alert visually and aurally if approaching a dangerous AoA—which is calculated by comparing the aircraft’s pitch, flight path, and G-loading.
Version (EDMO# AV-20E) is compatible with the TailBeaconX TSO.
*Approved for Part 23 aircraft with speeds of under 200Kts.
Features

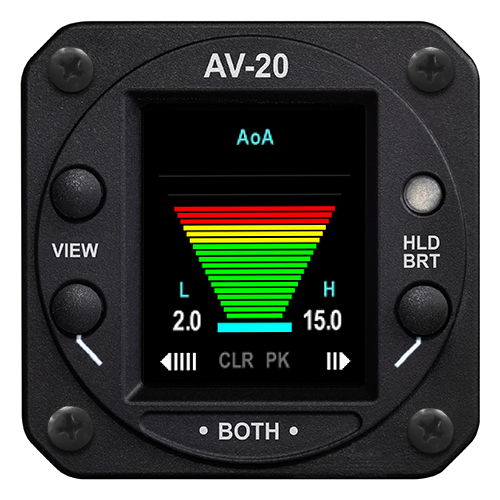

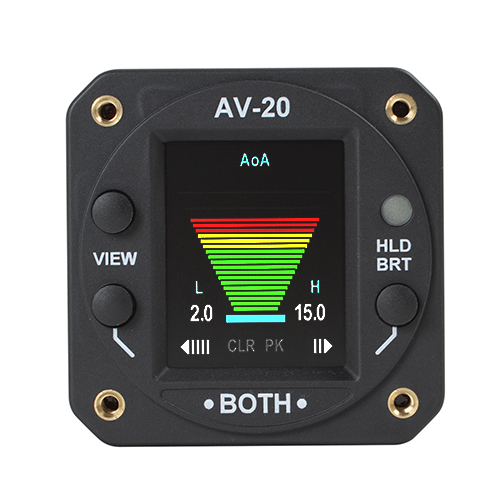

- AoA Display (Voice Alerting & Peaks)
- G-Meter Display (Voice Alerting & Peaks)
- Attitude (Roll / Pitch)
- Slip / Skid Indication
- Clock (GMT / Local)
- Outside Air Temperature (C / F)
- Bus Voltage Display
- Dual User Timers (Count Up / Down)
- Engine Run Timer
- Flight Timer
- Density Altitude Display
- True Airspeed Display (Kts / Mph)
- Internal Battery Operation (30 Min)
Specifications
Weight:
0.25 lb
Dimensions:
2.4 x 2.4 x 1.2 in.
Display diagonal:
1.8 in.
Contrast ratio:
500
Brightness:
1000 cd/m2
Viewing angle:
Left/Right: 60º
Up: 45º
Down:10º
Backlight lifetime:
50,000 Hrs
Input voltage:
+10 to +32 VDC (nominal)
Input voltage max:
+60 VDC
Input power:
3 Watts (0.25 Amps @ 12VDC) (nominal)
Input power max:
6 Watts (0.50 Amps @ 12VDC)
Electrical connector:
9 pin male D-Sub
Pneumatic connectors:
1/4 in. OD quick connect
Mounting:
(4x) #6-32 machine screws
Case material:
high impact ABS plastic
Operating temperature:
-20°C to +55°C
Product Codes
- Mfr Part No:AV-20E
- EDMO #:AV-20E
- Brand:UAVIONIX
- Category:Clocks & Instruments
