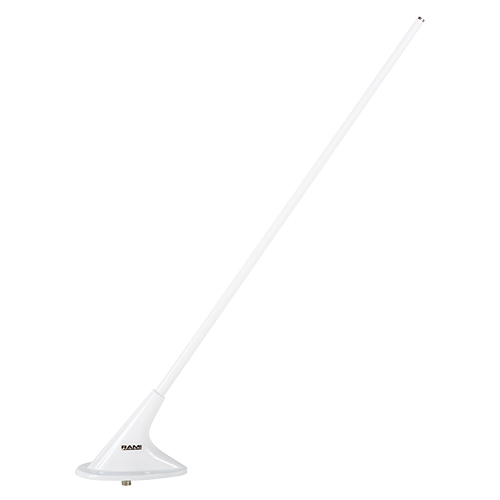

AV-14 VHF Communications Whip Antenna | 138–174 MHz

Product Description

The AV-14 is a general aviation antenna that is similar to the AV-10 using the same 4-bolt mounting base except it has a shorter radiating whip element. The antenna is designed to operate in the Public Service and Business Bands 138–174 MHz. The AV-14 operates at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lbs @ 250 mph.

Specifications

• Weight:
  8 oz
• Height:
  18.12 in
• Application:
  Airborne Communications
• Frequency:
  138–174 MHz
• Impedance:
  50 Ω Nominal
• VSWR:
  2.0:1 Maximum
• Polarization:
  Vertical
• Pattern:
  Omni-Directional
• Connector:
  BNC Female
• RF Power Capacity:
  25 Watts
• FAA TSO:
  C37d, C38d

Product Codes

• Mfr Part No
  AV-14
• ECCN
  7A994
• PROAPP
  PT2530CE
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• RAMI Limited Lifetime Warranty
