AV-1 VHF Base Station Antenna | 118–137 MHz

AV-1 VHF Base Station Antenna | 118–137 MHz

RAMI

Call For Pricing
In stock
EDMO # AV-1
MFR Part # AV-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

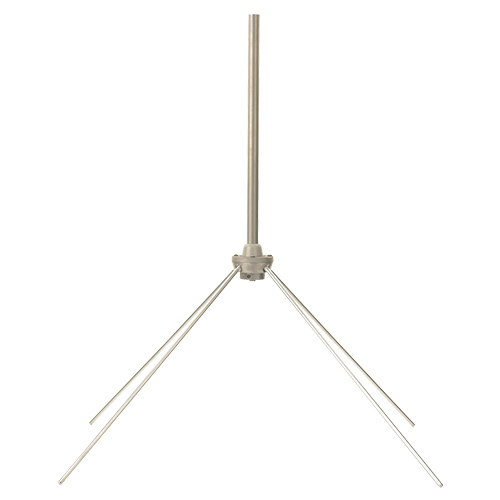

The AV-1 is a base station antenna for communications with ground vehicles or aircraft. It has heavy-duty construction with 3/8-inch diameter aluminum radials, a 1-inch diameter aluminum tube radiator, and is iridite-treated for durability. It mounts easily to a 1-inch diameter pipe or a 1-1/4 inch O.D. tube with locking set screws. A built-in, gap-type lighting arrestor is an important design feature. The antenna requires no additional tuning and is designed to withstand wind speeds of up 100 mph.

Features

  • Designed for base station communication
  • 118–137 MHz frequencies
  • Vertical polarization
  • Omnidirectional pattern
  • 50 Ω impedance
  • SO-239 connector
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

AFT-C

Fuel Test Cup

ASA

Available to order

EDMO#: AFT-C

MFR#: AFT-C

Call For Pricing

Specifications

  • Weight:
    2.75 lb
  • Height:
    37 in
  • Frequency:
    118–137 MHz
  • Impedance:
    50 Ω
  • VSWR:
    2.0:1, maximum
  • Polarization:
    Vertical
  • Pattern:
    Omni-Directional
  • Connector:
    SO-239
  • RF power capacity:
    500W
