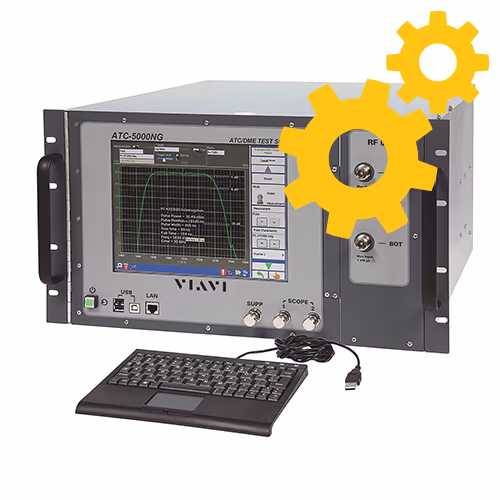

ATC-5000NG NextGen Transponder | Multi-Receiver Software Option
Product Description
The ATC-5000NG is an RF signal generator/receiver for testing Modes A/C/S transponders. Designed with modern software defined radio technology, the ATC-5000NG replaces the commercial functionality of the SDX-2000, ATC-1400A, and S-1403DL. This test set is designed for engineering development, design validation, manufacturing, and return-to-service testing.
Features
- Generates ATCRBS/Mode S interrogations
- 10.4 inch touch screen LCD display for operator control of all test set capabilities
- Remote controlled via GPIB or Ethernet
- Optional Command set emulation for SDX-2000, ATC-1400A and S-1403DL
- Software-driven design allows for field updates for adding new features, capability or modifications due to industry changes
- ADS-B squitter encode/decode
- DO-260, DO-260A and DO-260B data parsing
- Two independent transmitters and receivers
- TX/RX data logging capability
- Full diversity testing capability
- Data parsing in engineering units
- Pulse and frequency measurement
- UAT TX/RX capability (optional)
- Includes multi-receiver option
Specifications
No product specifications currently available.
Product Codes
- Mfr Part No:138159
- EDMO #:ATCNGOPT03
- Brand:VIAVI
- Category:Bench Test Sets
