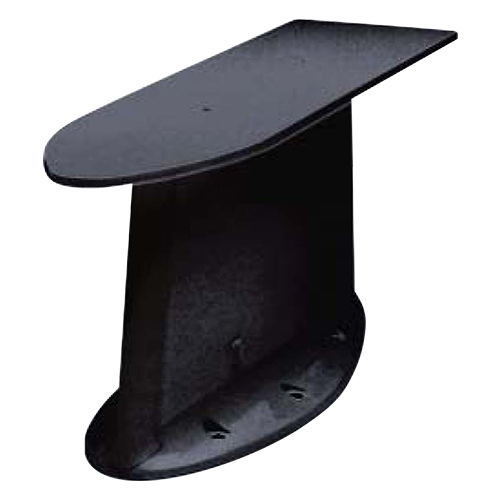

AT-5000 Tuned Blade Antenna | 29.7–960 MHz, 5.5-inch, Black
Product Description
The AT-5000 antenna is designed for the Flexcomm™ RT-5000 transceiver, covering the entire frequency range from 29.7 MHz to 960 MHz. The 5.5-inch low profile antenna is for applications where height is a critical factor.
This AT-5000 antenna (EDMO# AT-5000-2) comes in black.
*FC-5000 Tuner Required
Features
29.7–960 MHz frequencies
Vertical polarization
Omnidirectional radiation pattern
Black finish
Low profile
Tunable
N-Type female and TNC female connectors
Specifications
Weight:
3.5 lb
Dimensions:
3.6 x 11.8 x 5.5 in.
Frequency:
29.7–88 MHz 108–174 MHz 225–400 MHz 400–960 MHz
VSWR:
2.5:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance:
50Ω
Power (RF):
Low split–15 W High split–25 W
Temperature:
-55ºC to 70ºC
Altitude:
55,000 ft
Color:
Black
Product Codes
- Mfr Part No:121-040045-02
- EDMO #:AT-5000-2
- Brand:CANYON AEROCONNECT
- Category:Antennas
