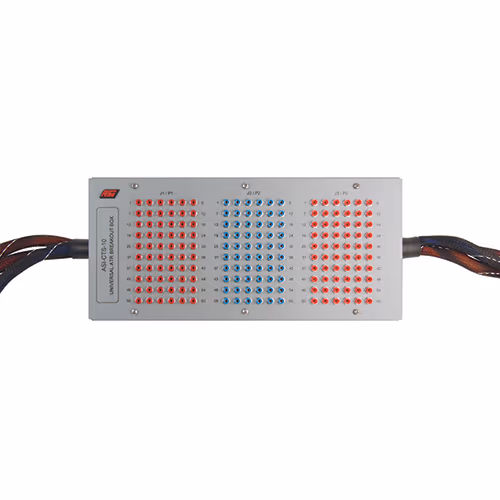

Universal ATR Breakout Box

The ASI-CTS-10 Universal ATR Breakout Box is used to gain access to all pins comprising up to three half-height, Thinline connectors. Signals to and from these connectors are available at the tip jacks mounted on the front panel of the ASI-CTS-10 chassis box. These tip jacks are labeled and color-coded to enhance usability. Using the ASI-CTS-10 is simple and requires no modification to aircraft wiring--simply plug the ASI-CTS-10 between the wiring harness and the LRU to gain access to all inputs and outputs.

The (EDMO# ASI-CTS-10) uses half-height, 4 row (60 pin) Collins Thinline Connectors (qty 3). All tip jacks are mounted on a protective chassis box for easy access.
