ASI-700-4 HF/VHF Discrete Function Interface Unit

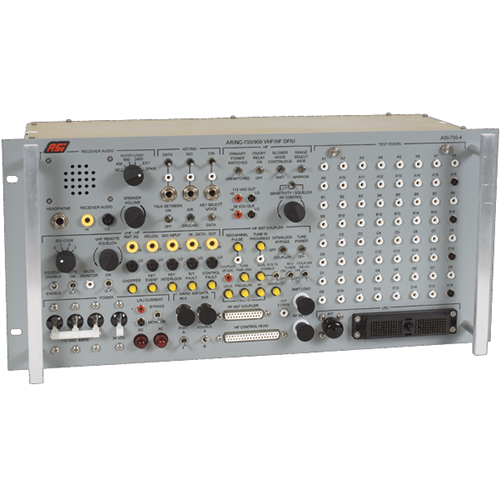

VHF/HF DISCRETE FUNCTION INTERFACE UNIT

AVIONICS SPECIALIST

CALL FOR PRICING
Out of Stock
EDMO#ASI-700-4
MFR#ASI-700-4

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The ASI-700-4 discrete function interface unit is functionally equivalent the the T1202 and is designed to test the Rockwell Collins ARINC 700/900 series HF and VHF line replaceable units (LRU). The ASI-700-4 also has the ability to test the Collins HF antenna couplers (490S-1 & CPL-920D).

This test unit works in conjunction with an ARINC 429/629 data bus generator to provide the LRU with all voltages, discretes, control inputs and outputs required for ""by the book"" testing per the maintenance manual. The option ASI-502 can be used as an ARINC 429 control head simulator.

Specifications

Dimensions:
8.75 x 19.00 x 6.00 in

Power:
28 VDC/115 VAC 400Hz

Supplied Equipment:
AC mating connector
DC mating connector

Optional Equipment:
ARINC 429 control head simulator (ASI-502)
ASI-700-2/-3/-4 to T1200() cable (ASI-70-0XA)
ASI-700/-700A/-700B / RTA-44A cable (ASI-70-04A)
Test overlay: VHF-700/-700A/-700B (ASI-04A1)
Test overlay: RTA-44A (ASI-70-04A2)
HFS-700/-900 / 628T-2/-2A cable (ASI-70-04B1)
ARINC-753 HFDL-700D voice interface panel for 628-2D / HFS-700D/-900D / CPL-920D (ASI-70-04C)
CPL-920D / 490DS-1 / J1 cable (ASI-70-04C1)
VHF-900/900B cable (ASI-70-04D)
628T-1() cable (ASI-70-E)
Test overlay: 628T-1() (ASI-70-04E1)
714E-1 cable (ASI-70-04G)
714E-2 cable (ASI-70-04H)
714E-3/6 cable (ASI-70-04J)
ASI-700-4 control plug to ASI-502 cable (ASI-70-04K)
HSF-700/-900/628T-2 A5 alignment fixture (ASI-70-04P)
VHF-700 A2 adjustment cover (ASI-70-04Q1)
VHF-700 adjustment cover (ASI-70-04Q2)
RTA-44A series detector circuit (ASI-70-04R)
HFDR data load cable (ASI-70-04S)
HFP-712 cable (ASI-70-04T)
RTA-83A cable (ASI-70-04U)
RTA-83A test overlay (ASI-70-04U1)
VHF-920 cable (ASI-70-04V)
Test bench harness (ASI-70-207)
Antenna simulator [172-H-18] (ASI-207-1)
CPL-920D RF high voltage test fixture (ASI-207-3)
CPL-920D control card test set (ASI-207-4)
CPL-920D power supply test set (ASI-207-5)
CPL-920D MIMS discriminator tester (TE2) (ASI-207-6)
CPL-920D RF network test set (ASI-207-7)
CPL-920D RF network holding fixture (ASI-207-8)
CPL-920D calibration fixture (ASI-207-9)
CPL-920D 90° phase shift network (ASI-207-10)
CPL-920D 0° power divider (ASI-207-11)
CPL-920D RF test cable (ASI-207-12)
CPL-920D test adapter (ASI-207-13)
Oscillator logic probe (ASI-700-4-10)
Power supply test load fixture (ASI-700-4-02)
Translator Tester (ASI-700-4-03)
Blower A4A2 test fixture (ASI-700-4-04)
Chassis/Power supply test fixture (ASI-700-4-05)
Unity gain amplifier fixture (ASI-700-04-06)
Voltage regulator A6A3 tester (ASI-700-07)
Control box assembly - bandswitch adaptor (ASA-700-4-08)
500Ω T-attenuator (ASA-711)
RF injection probe (ASA-712)
2x5 tuning panel for RTA-83A (ASA-803-1)

Product Codes

  • Mfr Part No:ASI-700-4
  • EDMO #:ASI-700-4
