Pro Line Test System Mainframe | Require ASI-200-X Plugins
Product Description

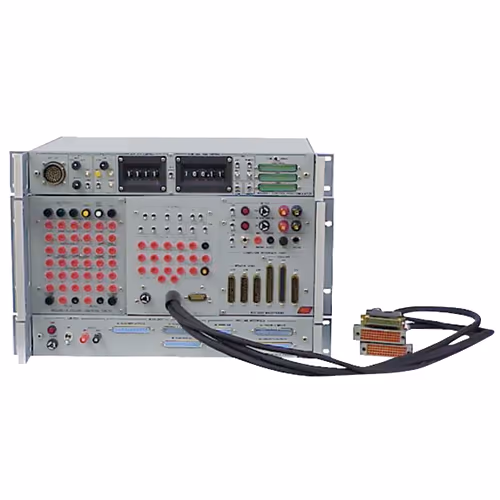

The ASI-2000 Pro Line test system mainframe is core of the ASI Pro Line test System and works in conjunction with the CTC-429 computer board, ASI-401-X Pro Line PC interface panel and various ASI-200-X plug in adaptors to test the Collins Pro Line, Pro Line II, and Pro Line 4 avionic systems. The ASI-2000 provides the power, test points and computer interface required for testing avionics LRU's. Also, manual testing of ARINC standard avionics is possible using existing user-supplied Linaire cable.
Software required for testing Pro Line Avionics must be purchased directly from Rockwell Collins by the end-user.
Specifications
Dimensions:
7.00 x 19.00 x 13.00 in
Power Requirements:
26 VAC, 400 Hz / 28 VDC
Units Tested:
Pro Line / Pro Line II / Pro Line 4 / ARINC standard
Optional Equipment:
ADF antenna simulator (19"" rack mount) (ASI-61)
ADF antenna simulator (970W-1) (ASI-61W)
Heading Track Selector (ASI-160B)
Heading Track Selector with meters (ASI-160C)
Track selector (479v-3) (ASI-161)
Track selector (ASI-190)
Track selector with meters (ASI-190B)
DME simulator (ASI-200-5A1)
ADF simulator (ASI-278)
Control head simulator (ASI-500-1)
Control head simulator, 8.33kHz (ASI-500-2)
Pro Line / PC Interface, standard cables (ASI-401-1)
Pro Line / PC Interface, custom cables (ASI-401-2)
Pro Line / PC Interface, long cables (ASI-401-3)
CTC-429 serial loopback pod (ASI-402)
Computer with internal CTC-429/ASI-401 (ASI-2001)
Pro Line computer board, CTC-429 (ASI-CTC-429)
Product Codes
- Mfr Part No:ASI-2000
- EDMO #:ASI-2000
- Brand:AVIONICS SPECIALIST
- Category:Bench Test Sets
- SCHEDULE B CODE:8544.19.0000
