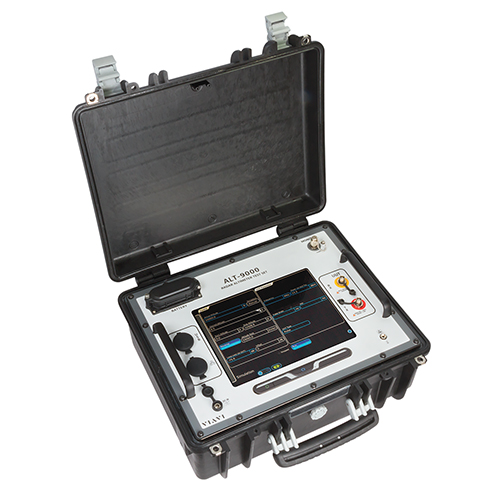

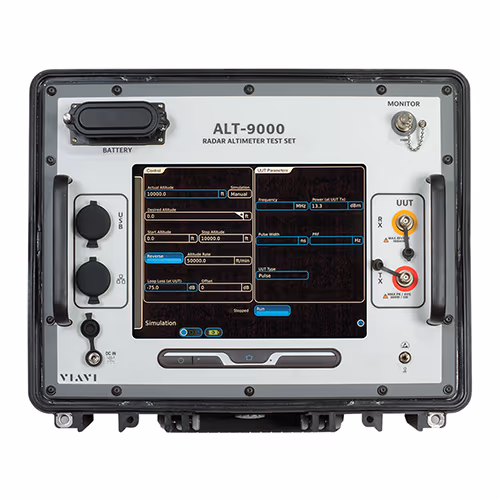

ALT-9000 Flight Line Radio Altimeter Test Set
Product Description
The Viavi ALT-9000 radio altimeter test set is a portable flight line test solution that uses fiber optic delay to allow it to work with all types of radio altimeters. The ALT-9000 will test the complete radio altimeter system — allow technicians to isolate problems to the antenna, coax, LRU or or indicator. This eliminates unnecessary LRU swaps or other system component replacements.
Features
- Simulate static or dynamic altitudes to support testing of TCAS and GPWS/TAWS aircraft systems
- Test RX sensitivity of the radio altimeter
- Tests all types of radio altimeters, including LPI variants
- Direct-connect to UUT TX/RX connectors or at the aircraft's TX/RX antennas via couplers
- Fast detector for tracking LPI radio altimeters with TX power management
- Software upgradeable
- Parametric measurements of TX power, frequency, pulse width, FM deviation, PFR for most radio altimeter types
- Large touchscreen display
Specifications
Weight:
32 lb (14.5 kg), Test unit only

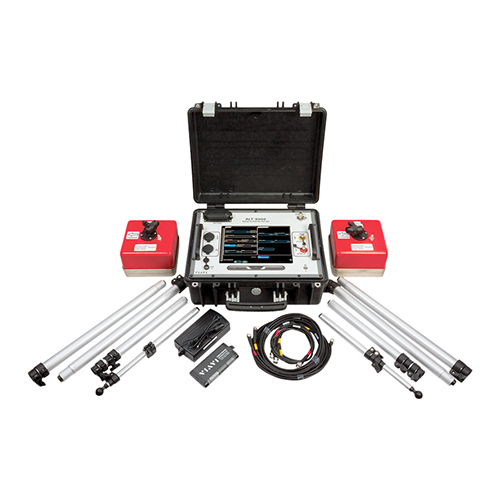

39.9 lb (88 kg), Kit
Dimensions:
8.4x 18.6 x 16.3 in (21.4 x 47.4 x 41.5 cm), test case case

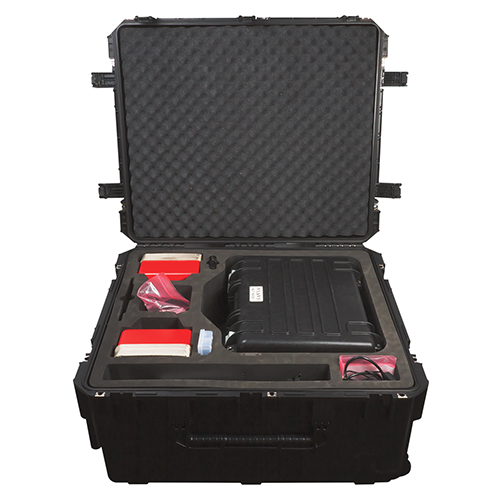

16.4 x 33.7 x 28.5 in (41.6 x 85.6 x 72.4 cm), w/standard transit case, or accessory case
Temperatures:
14°F to 131°F (-10°C to 55°C), operating
-22°F to 158°F (-30°C to 70°C), storage
Display:
12-inch color LCD, sunlight readable w/backlight
Controls:
touchscreen
Impedance:
50Ω
SWR:
2.0:1, TX
1.5:1, RX
Connector:
TNC (x2), single TX/RX channel
RF Input Frequency Range:
4.20 GHz — 4.40 GHz
FMCW/CDF FMCW
TX Power Measurement:
4 mW (+6 dBm) to 2W (+33 dBm), ±2 dB
FM Sweep Rate Measurement:
50 Hz — 400 Hz, ±5Hz
FM Deviation:
±20 MHz — 100 MHz, ±5 Hz
Pulse
Frequency Measurement:
4.2 GHz — 4.4 GHz, ±10 MHz
TX Power Measurement:
1 mW (0 dBm) to 300 W, (+54 dBm) peak
TX Pulse Width PRF Measure:
20 ns — 5 µs, ±10 ns
TX Pulse PRF Measurement:
2 KHz — 30 KHz, ±5%
Product Codes
- Mfr Part No:ALT-9000
- EDMO #:ALT-9000
- Brand:VIAVI
- Category:Flight Line Test Sets
