Amplified GPS Splitter | 1 Input, 8 Outputs, N-type Connectors
Product Description
This amplified loaded DC blocked GPS splitter features one input and two output for spitting RF frequencies from 1.1 GHz — 1.7 GHz. It is designed to amplify and split the L-band frequency to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or another device up from the splitter. The other port J2 is DC blocked and loaded with a 200Ω resistor to simulate antenna current draw which prevent alarm faults.

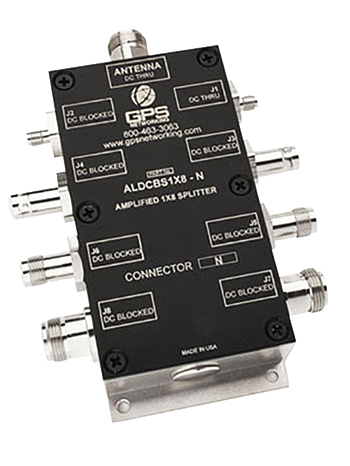

This amplified GPS splitter (EDMO# ALDCBS1X8) features one input and eight outputs, N-type female connectors.
Features
- Excellent gain flatness: <1 dB variation between ports
- Flat group delay: <1 ns variation between L1 & L2
- High output gain: 14 dB typical across operating frequencies
- Wide accepted frequency range: covers entire L-band & GNSS constellations
- Efficiently block ports: 200Ω resistors prevents antenna alarm faults
- Matched phase balance: <14° variation between ports
Specifications
Weight:
19.3 oz (547 g)
Dimensions:
1.3 x 5.25 x 2.5 in, max. (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHZ
Characteristic Impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
17 mA
Gain:
13.0 dB — 15.0 dB (14.0 dB, typical)
Input SWR:
2.0:1, max.
Output SWR:
2.0:1 max.
Noise Figure:
L1: 2.25 dB
L2: 4.75 dB
Gain Flatness:
0.5 dB, typical (1.0 dB, max.)
Amplitude Balance:
1.0 dB, max.
Phase Balance:
14°, max.
Isolation:
L1: 16 dB
L2: 12 dB
Group Delay Flatness:
0.25 ns, typical (1 ns, max.)
Input P1dB:
-23 dBm, typical
Connector Option:
N type
Product Codes
- Mfr Part No:ALDCBX1X8-N
- EDMO #:ALDCBS1X8
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
