Amplified GPS Splitter | 1 input, 2 output, N-type Connector
Product Description
This amplified loaded DC blocked GPS splitter features one input and two output for spitting RF frequencies from 1.1 GHz — 1.7 GHz. It is designed to amplify and split the L-band frequency to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or another device up from the splitter. The other port J2 is DC blocked and loaded with a 200Ω resistor to simulate antenna current draw which prevent alarm faults.

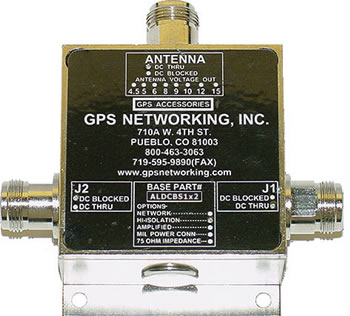

This amplified GPS splitter (EDMO# ALDCBS1X2) features one input and two outputs, N-type female connectors.
Features
- Excellent amplitude balance: < 1 dB variation between ports
- Flat group delay < 1 ns variation between L1 & L2
- High output gain: 22 dB typical across operating frequencies
- Wide accepted frequency range: entire L-band & major GNSS constellations
- Efficiently block ports: 200Ω prevents antenna alarm faults
- Matched phase balance: < 4° variation between ports
Specifications
Weight:
10.2 oz, max.
Dimensions:
1.3 x 3.25 x 2.5 in (without connectors)
Operating Temperate Range:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω (unused port should be terminated with 50Ω loads)
Req. DC Input V.:
3.3 VDC — 15 VDC (for non-network devices)
Input P1dB:
-24 dBm
Current Draw:
23 mA
Gain:
21 dB — 23.5 (22 dB, typical)
Input SWR:
2.0:1, max.
Output SWR:
2.0:1, max.
Noise Figure:
L1: 2.3 dB, typical (2.5 dB max.)
L2: 4.7 dB, typical (5.0 dB max.)
Amplitude Balance:
0.25 dB, typical (1 dB, max.)
Phase Balance:
4.0°
Isolation:
L1: 22 dB
L2: 15 dB
Group Delay Flatness:
0.5 ns, typical (1 ns, max.)
Connector Option:
N-type
Product Codes
- Mfr Part No:ALDCBS1X2-N
- EDMO #:ALDCBS1X2
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
