ADTS553F Air Data Test Set | 3-Channel
Product Description

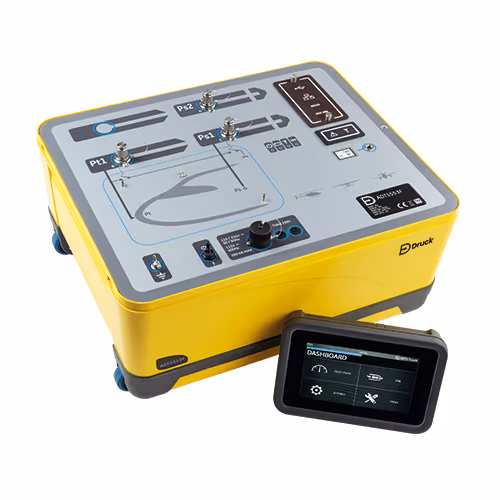

The ADTS553F air data test set is a portable three-channel flightline pitot static tester. It provides pitot static air data validation, leak testing, fault-finding and avionics instrumentation testing for any aircraft requiring angle of attack two off static-controlled channels, in addition to a pitot test channel. The ADTS553F can also be used as a standard two-channel flightline air data test set. Included is the ADTS Touch, a removable, robust wireless hand terminal that communicates to the test set via secure Bluetooth® wireless technology. This technology and the innovative design of the ADTS Touch remove the need to run cables or hoses into the cockpit.
Features
Test Set Includes:
- ADTS553F pitot static tester
- ADTS Touch hand terminal
- AC power lead: 1.8 m (6 ft) length approximately
- ADTS Touch remote connecting cable: 1X 5m (16ft)and 1X 18m (59 ft) length approximately
- ADTS Touch battery pack
- ADTS Touch AC power supply unit
- Pack of Ps and Pt color labels
- Multi-language installation manual
- Accessories bag
- Operator manual (installed in ADTS Touch)
- Calibration certificate traceable to international standards
Features:

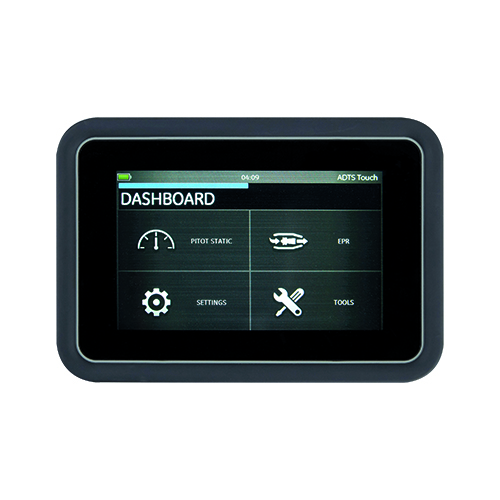

- ADTS Touch hand terminal with Bluetooth® wireless technology (backup cable supplied)
- Swipe–action touch screen user interface with the color graphics and menu
- Uses standard icons and layouts for routine testing
- Can be used as two- or three-channel air data test set
- Multiple languages
- High flow proportional pressure control technology
- Low airspeed option
- TERPS high accuracy pressure sensors inside
- Accuracy suitable for RVSM validation
- 15-month accuracy for low cost of ownership
- Optional 18-month accuracy for increased savings on the cost of ownership
- Engine Pressure Ratio option
- Stores customized aircraft test sequences
- Large capacity pressure/ vacuum pump
- Retrospectively upgradable to four channels
- Accessories bag
- Druck ADTS global service support
Specifications
Weight:
52 lb
Dimensions:
20.7 x 16.7 x 11.8 in. (base unit dimensions)
Display:
7” WVGA (800X480) TFT, LED backlit display
Power:
Auto-selection between:
100/120/230 Vac, 50/60 Hz, power - 250 VA
115 Vac, 400 Hz, power - 250 VA
Pneumatic connections:
AN6 for Ps1 and Ps2
AN4 for Pt1 and Pt2
Temperature:
0°C to 50°C (32°F to 122°F)
Product Codes
- Mfr Part No:ADTS553F-E0-SCAS-SR
- EDMO #:ADTS-553F
- Brand:DRUCK
- Category:Air Data & Pitot Static Test Sets
