EDMO

ACF 314 Cooling Fan | 3 Port, 14V

SANDIA AEROSPACE

CALL FOR PRICING
Available To Order
EDMO#ACF314
MFR#ACF314

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

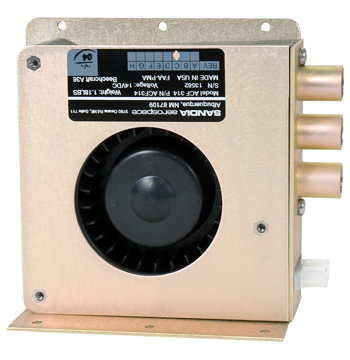

The ACF 314 is able to cool up to three avionics units with up to 20 cubic feet of cool air per minute. It operates on 14 VDC and maintains avionics equipment at proper operating temperature. These cooling fans use high quality, brushless blower motors and use RunQuiet technology. These units are FAA PMA approved and pass stringent environmental testing to ensure years of reliable service.

Features

  • 3 ports
  • Brushless blower
  • RunQuiet technology

Specifications

Weight:
1.18 lb

Dimensions:
5.18 x 5.18 x 2.1 in

Operating Voltage:
14 VDC

Current Draw:
960mA (1.7A at start-up)

Certification:
FAA-PMA

Product Codes

  • Mfr Part No:ACF314
  • EDMO #:ACF314
  • Brand:SANDIA AEROSPACE
  • Category:Avionics & Instrument Mounting
  • ECCN:7A994
  • PMA:PQ0894SW
  • SCHEDULE B CODE:8414.59.9080
