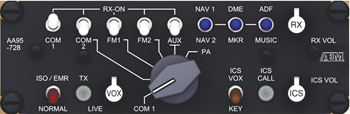

AA95-728 Single Channel Audio Controller | Cockpit Crew
Product Description
The AA95-728 Single Channel Audio Controller provides control over all audio in an aircraft while allows pilots and crew to select between transmitted and received audio for transmit and receive audio, LIVE, KEYED, or VOX intercom, interface for a hand mic, and pilot isolation/emergency operations. A single rotary switch switches the transmit and PA functions. Received audio volume is individually adjusted with rotary controls and the sidetone level is adjustable internally.
Features
- Full pilot and co-pilot support
- 2 Comm, 2 FM and AUX XCVR positions
- 5 Nav-Aids plus music input
- KEYED, LIVE, VOX ICS with front panel control
- 3-level alerting
- ICS Call annunciator
- Illuminated TX selector knob
- 1 Direct Audio input
Specifications
Weight:
2.1 lb (955 g)
Dimensions:
1.9 x 6.82 x 5 in (48.3 x 173.2 x 127 mm)
Mounting:
Dzus rail
Faceplate:
Engraved acrylic edge lit panel
Material/Finish:
Chassis & cover are 5050-H32 brushed aluminum with conversion coating finish
Connectors:
Male 50 pin & 37 pin D-subminuture connectors with slide locks
Temperature:
-20°C to 55°C, ambient
-55°C to 85°C, survival
Humidity:
95%, non-condensing
Altitude:
25,000 ft, max.
Input Power:
Nominal: 27.5 VDC (nominal) 0.50A max.
Lighting: 27.5 VDC @ 160 mA, max.
Alert Power: 27.5 VDC (nominal), 150 mA, max.
Product Codes
- Mfr Part No:AA95-728
- EDMO #:AA95-728
- Brand:CANYON AEROCONNECT
- Category:Aircraft Audio
