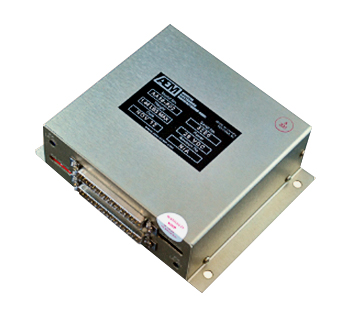

AA38 Series Local ICS Loop | 8 Place, Hi Z, Master Volume
Product Description
The AA38 Series Aircraft Intercom System Local ICS Loop provides intercom functions with operation in Live, VOX, or PTT modes. The units are bulkhead mounted containing all the circuitry required to support a wide variety of ICS Loop applications, particularly isolation/ICS amplifier use, where the output is required to be headset or line level. A switch-selectable NAT/Andrea allows connections to larger audio systems, and an auxiliary input allows for audio input from an audio panel or transceiver.
Version AA38-802 has functions for 8 users with high impedance headsets, and external ICS volume control.
Features
- HI Z local ICS loop with Master Volume
- 8 MIC inputs
- 2 ICS Tie lines
- 2 RX inputs
- 8 headset outputs
- Balanced output for high common mode noise rejection
- LIVE, VOX or PTT operation
- External ICS volume control
Specifications
Weight:
1.44 lb
Dimensions:
5.94 x 4.95 x 1.94 in.
Mounting:
Bulkhead mount with four 10-32 screws
Material/finish:
5052-H32 brushed aluminum with conversion coating finish
Connectors:
Filtered male 37-pin D-subminiature connector with V5 locking tabs
Temperature:
-55ºC to 85ºC
Altitude:
35,000 ft
Input voltage:
24.8 to 30.3 VDC
Product Codes
- Mfr Part No:aa38-802
- EDMO #:AA38-802
- Brand:CANYON AEROCONNECT
- Category:Aircraft Audio
