Expansion Panel | 4 Transceiver/Receiver Base Unit Without Faceplate
Product Description

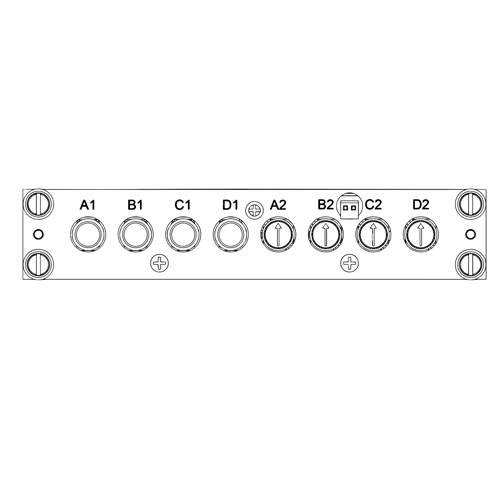

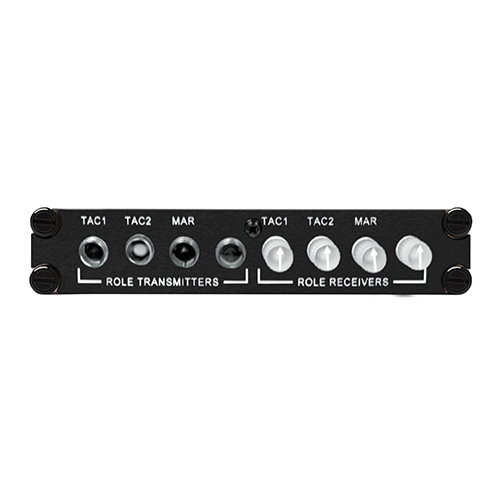

AA30-310 Expansion Panel permits an aircraft audio system to support more receivers/transceivers than a single 380-series panel is capable of supporting individually. The Dzus-mounted 4-transceiver radio receiver expansion panel is designed to work in conjunction with the 380-series audio selector panels.
Version (EDMO# AA30-310) is the expansion panel unit only and does not include the faceplate.
Features
- Integral push-in/push-out selector switches
- Four ganged transmitter selector pushbutton switches
- Four receiver level panel potentiometers
- Subassembly from a 247 audio mixing amplifier
- Blue/white lighting
Specifications
Weight:
1.05 lb
Dimensions:
8.7 x 5.75 x 1.13 in
Power:
0.25A, 28 VDC max
Compliance:
RTCA/DO-160E, FAA TSO-C139, RTCA DO-214 Class 1B
Product Codes
- Mfr Part No:AA30-310
- EDMO #:AA30-310
- Brand:CANYON AEROCONNECT
- Category:Aircraft Audio
