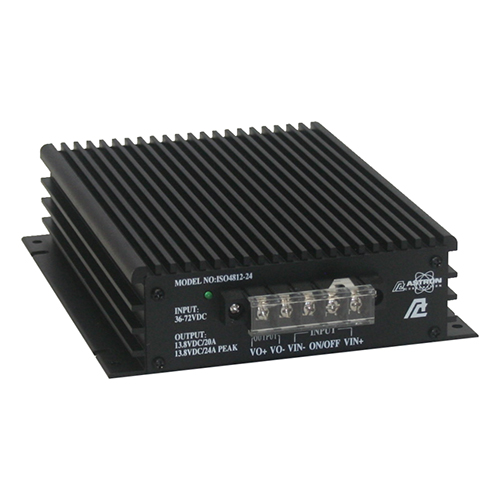

DC to DC Converter | 30-56 VDC Input, 13.8 VDC Output, 18 Amps Continuous, 24 Amps Peak

A4812-24

ASTRON

CALL FOR PRICING
Available To Order
EDMO#A4812-24
MFR#A4812-24

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

These DC to DC Converter power supplies are ideally suited for use with mobile 12/13.8 VDC equipment. Both Isolated and Non-Isolated models are available. The design technology emphasizes high efficiency, tight regulation and low ripple/noise. To meet individual peak power requirements, models support peak currents up to 25% above nominal. All models have built-in protection features including output current limiting, overvoltage protection, internal fuse protection, and over temperature shutdown. Isolated models include a crowbar on the output to prevent damage. These units integrate seamlessly with standard 12/13.8 VDC equipment. Screw-type terminal connections are used which are easily accessible and ensure a safe and reliable installation.

This DC to DC Converter (EDMO# A4812-24) has 30-56 VDC input voltage, 13.8 VDC output voltage, 18 A continuous current, and 24 A peak current.

Features

  • Input voltage range: 22 to 72Vdc, depending upon model
  • Handles up to an extra 25% peak current during peak power events
  • Built-in protections: Overvoltage, overcurrent and short-circuit protections with crowbar on Non-Isolated models
  • Up to 94% efficiency
  • 48V Isolated models meet SAE-J1113-11 specification for Immunity to Transients (Surges)
  • LED visual indicators: DC-OK (Green) and Fault (Red)
  • Includes a separate Remote ON/OFF connection terminal for use with an ignition switch
  • High quality heavy duty industrial metal construction with easy access Terminal Block screw connections
  • RoHS (lead free) compliant

Specifications

Weight:
2.0 lbs (0.9 kg)

Dimensions:
1.8 x 6.2 x 6.8 in

Input Voltage:
30-56 VDC

Output Voltage:
13.8 VDC

Continuous Current:
18 A

Peak Current:
24 A

Minimum Efficiency:
92% min Non-Isolated models;  90% min Isolated models

Operating Temperature:
-25 to 55ºC

Storage Temperature:
-40 to 85ºC

Overtemperature Setting:
70ºC max

Product Codes

  • Mfr Part No:A4812-24
  • EDMO #:A4812-24
  • Brand:ASTRON
  • Category:Inverters & Converters
