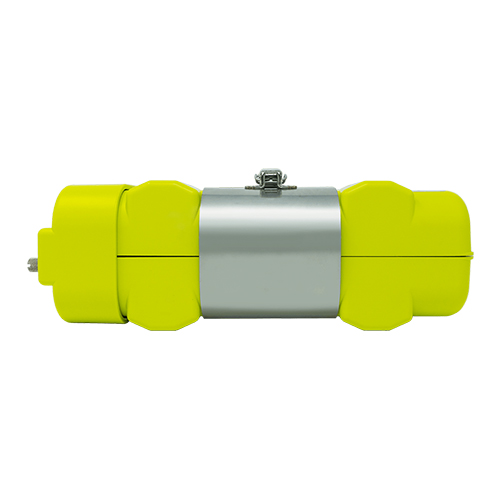

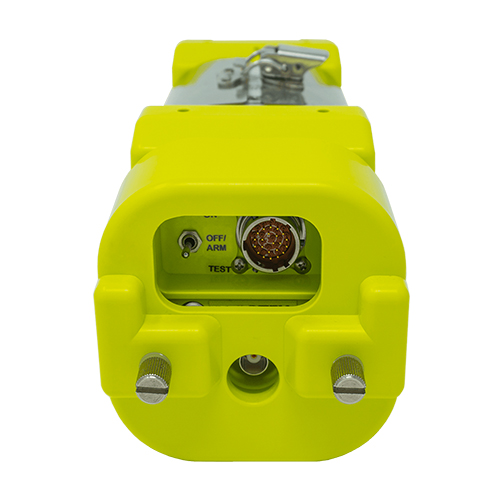

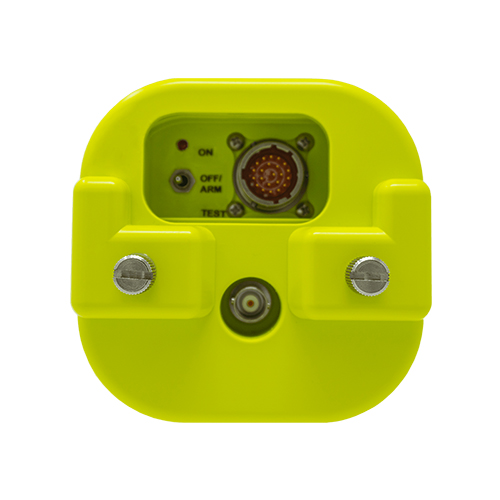

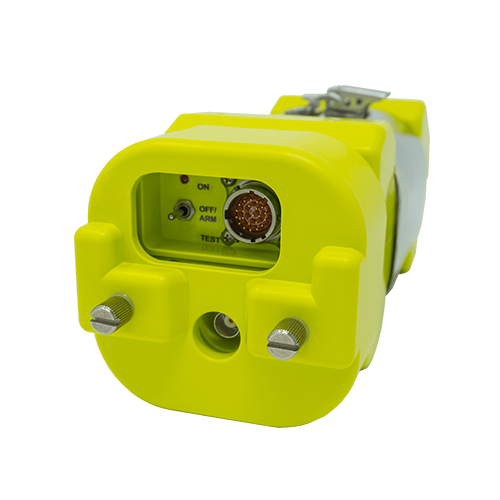

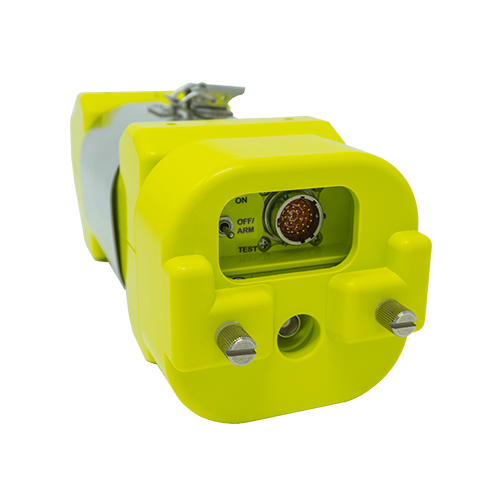

ELT 4000M | Beacon and Battery (Alkaline)
Product Description
The ELT 4000M is a transport-grade 3 frequency Emergency Locator Transmitter (ELT) that utilizes alkaline batteries. This innovative power source means that the ELT 4000M is completely exempt from FAA special condition requirements. In the event of an emergency, the ELT 4000M can be activated manually or automatically to quickly alert local search and rescue teams of your situation. Cost of ownership benefits include a lower battery expense per cycle, no hazmat shipping and easy disposal. An integrated NAV interface (ARINC429) omits the requirement and expense of installing a separate NAV interface unit.
Features
- Automatic Fixed Emergency Locator Transmitter
- Tri Frequency distress beacon, digital 406 MHz and analog 121.5 MHz and 243.0 MHz homing signals
- Auto activation via internal G-switch
- Dual-band antenna with single connector and cable to transmitter – Blade and Whip available
- Compatible with legacy antennas
- Easy maintenance and installation
- Many cockpit remote switch options available
- Can be connected to onboard GPS via Integrated ARINC429 interface
- GPS data is embedded in digital transmission reducing search radius down to 100 meters Cospas-Sarsat Type Approved
- Compatible with ARTEX 406Test.com Satellite Confirmation Testing System
- ARTEX ELT 4000M HM Helicopter version with 5-axis G-Switch available
- 5-year battery life (replaceable). Ships non-hazmat
Specifications
Weight:
5.45 lb (2.47 kg)
Dimensions:
11.63 x 3.42 x 4.15 in (295 x 87 x 105 mm)
Operating Frequencies:
406.031 MHz (± 1 kHz), 121.5 MHz (± 0.005%), 243.0 MHz
Emission Designators:
16K0G1D (406.031 MHz), 3K20A3X (121.5 MHz)
GPS:
Built-in GPS Navigation Interface (ARINC429)
Output Power:
406 MHz: 5W (37 dBm) for 24 hours @ -20 to 55°C (-4 to 131°F)
121.5 MHz: 100 mW min (20 dBm) for 50 hours @ -20 to 55°C (-4 to 131°F)
Output Connector:
BNC Female (406/121.5 MHz)
Activation:
Automatic via Primary G-Switch by 4.5 ± 0.5 feet per second (2.3 G) and Manual Activation
Battery:
5-year Alkaline
Operating Temperature:
-20 to 55°C (-4 to 131°F)
Storage Temperature:
-55 to 85°C (-67 to 185°F)
Self Test:
G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, and Low Battery
Remote Control:
ON/ARM/TEST
Approvals:
FAA, Cospas-Sarsat, and EASA (CAAC, ANATEL, and Industry Canada Pending
Product Codes
- Mfr Part No:A3-06-3260
- EDMO #:A3-06-3260
- Brand:ACR ELECTRONICS / ARTEX
