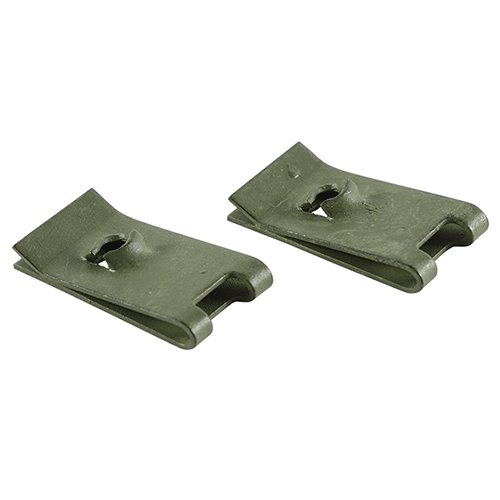

U-type Tinnerman Speed Nuts | #8 Screw, 0.040–0.051in Panels
Product Description
Tinnerman U-type nuts snap into position over a panel’s edge and ideal in blind or hard to reach locations without requiring welding or riveting. They are constructed of aircraft spring steel with a phosphate finish.
This Tinnerman U-nut (EDMO# A1786-8Z1D) uses a #8 screw and fits panels which a thickness of 0.040 to 0.051 inches have a and panel hole diameter of 0.250 inch.
Features
- Snaps into position over a panel's edge
- Requires no welding or riveting
- Aircraft spring steel construction
Specifications
Length:
0.530 in
Width:
0.500 in
Center of Hole to Edge:
0.218 in
Panel Hole Diameter:
0.250 in
Material Thickness:
0.028 in
Type B Screw:
#8
Panel Thickness:
0.040 – 0.051 in
Material:
Spring steel
Finish:
Phosphate with olive drab paint
Product Codes
- Mfr Part No:A1786-8Z1D
- EDMO #:A1786-8Z1D
- Brand:EDMO DISTRIBUTORS, INC
- Category:Avionics & Instrument Mounting
