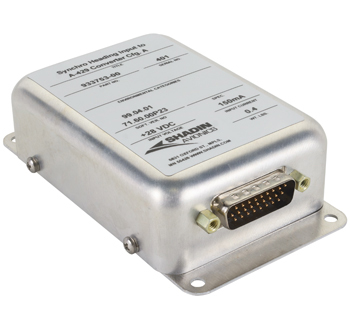

Synchro Heading Input Converter | ARINC 429
Product Description
The converter accepts the Magnetic Heading (ARINC 407 3-wire Synchro Data Inputs) and converts to A-429 low speed output label 320.
Features
Inputs:
- ARINC 407 3-wire (X, Y, Z) Synchro Heading Input
- Reference (H, C) 26VAC 400Hz
- 1 Discrete Input (Synchro Valid)
Output:
- ARINC 429 (A and B) Label 320
Specifications
Weight:
0.4 lb
Dimensions:
1.15 x 4.30 x 2.40 in.
Input voltage:
28VDC
Input current:
150mA
Input data:
Magnetic Heading, ARINC 407 3-wire Synchro (Reference 26VAC 400Hz Excitation 11.8VL-L)
1 Discrete Input: Synchro Valid
Output data:
ARINC 429 LS Data Magnetic Heading, Label 320
Temperature:
-55°C to +70°C
Altitude:
55,000
Product Codes
- Mfr Part No:933753-00
- EDMO #:933753-00
- Brand:SHADIN LP
- Category:Engine and Fuel Flow Management
