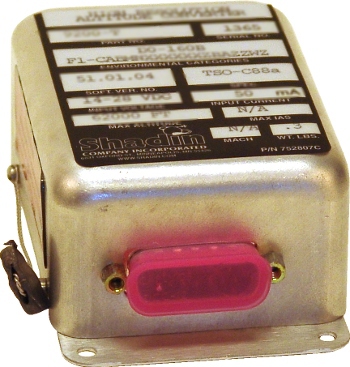

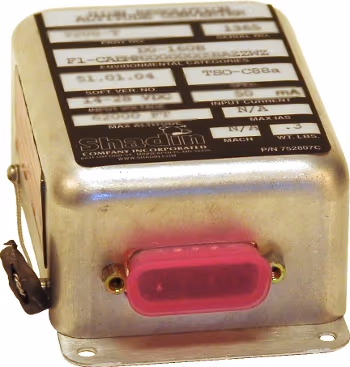

Impeller Drum FF to A-429 Converter
Product Description
The Impeller Drum FF to A-429 Converter (EDMO# 930514-00) is used to convert input fuel flow data to ARINC 429 Labels 244 and 347 and send it to the flight management system or any other device requiring Fuel Flow information and capable of accepting ARINC 429 Input.
Specifications
Weight:
0.4 lbs
Dimensions:
1.15 x 4.30 x 2.40 in
Power Supply Voltage:
28 VDC
Supply Current:
120 mA
Protection:
Not internally fused
Inputs:
Left Reference Drum and Left Signal Impeller
Right Reference Drum and Right Signal Impeller
Outputs:
ARINC 429 (Labels 244, 347)
Accuracy:
System: ± 0.3% Full Scale
Operating Temperature:
-55 °C to 70 °C
Storage Temperature:
-55 °C to 85 °C
Operating Altitude:
Up to 55,000 ft
In-Flight loss of Cooling:
Equipment can run indefinitely with no cooling
Regulatory:
TSO-C44b
Product Codes
- Mfr Part No:930514-00
- EDMO #:930514-00
- Brand:SHADIN LP
- Category:Engine and Fuel Flow Management
- ECCN:7A994
- TSO:C44b
