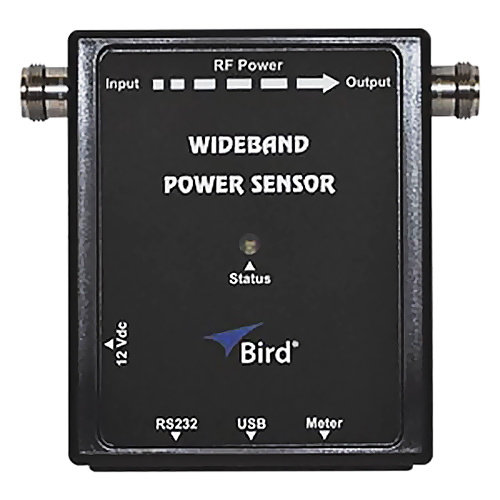

Bird 5017D Thru-Line Power Sensor | 8800S & 3550R Test Sets
Product Description
The Bird 5017D Thru-Line Power Sensor functions as an external power meter for the 8800S* & 3550R** digital radio test sets. With the required software installed, the 5017D provides simultaneous forward and reverse power measurements up to 500 watts and VSWR measurements that are displayed to the screen. This device requires no field calibration and only calibration once per year and is traceable to the National Institute of Standards and Technology (NIST). The 5017D Thru-Line Power Sensor measures True Average Power, Peak Power, and Duty Cycle directly with exceptional accuracy and uses these precise measurements to calculate a wide range of other important factors, such as VSWR, Return Loss, Reflection Coefficient, Crest Factor, Average Burst Power and CCDF.
Features
- The 8800S test set requires optional software 88XXOPT13 (EDMO# 8800OPT13)
- The 3550R test set requires optional software 3550OPT14 (EDMO# 3550OPT14)
Specifications
Weight:
1.2 lb, max
Dimensions:
4.8 x 4.6 x 1.3 in (122 x 117 x 33 mm)
Frequency range:
25 Mhz – 1.0 GHz
Power Range:
500 mW — 500 watts, average
1,300 watt, peak
Insertion VSWR:
<1.05
Insertion loss:
<0.0 dB
Directivity:
28 dB up to 100 MHz
30 dB from 100 MHz – 1000 MHz
Average Forward Power Range:
500 mW - 500 Watt, average
1300 Watt, peak
Burst Average Power:
13.5 watt – 500 watt, average
burst width: 1 µs to 5 ms
repetition rate: 5 Hz, minimum
duty cycle: 0.002 – 1.0
Peak Envelope Power:
13.5 watt – 1,300 watt
Connectors:
two N-type female
Power supply:
USB Port: less than one low-power USB load
DC Input Connectors: 7 VDC – 18 VDC @ less than 0.1A
Impedance:
50Ω, nominal
Data Logging:
Requires 5000-XT or VPM3
Temperature:
-10°C to 50°C (14°F to 122°F), operating
-40°C to 80°C (-40°F to 176°F), storage
Mechanical Shock and Vibration:
IAW MIL-PRF-2880F Class 3
Product Codes
- Mfr Part No:92793
- EDMO #:92793
- Brand:VIAVI
- Category:Land Mobile Radio Test Sets
