Insertion/Extraction Tool | Size 22 HD connectors, 22 – 28 AWG

Product Description

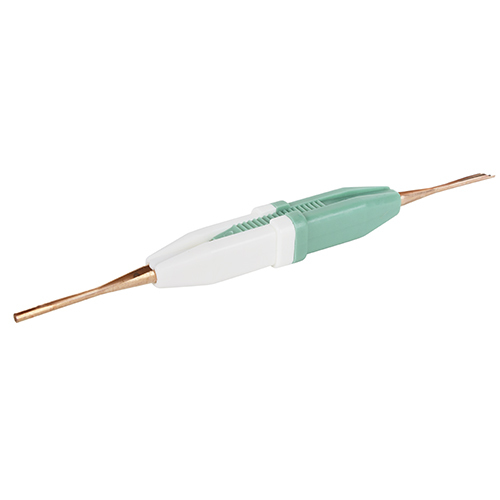

The 91067-1 insertion and extraction tool with metal tips has green and white colored handles. This hand tool is designed for the Type XVII contacts, size 22 used in Amplimite high density (HD) connectors.

This extraction/removal tool (EDMO# 91067-1) is used is with 22 AWG – 28 AWG, size 22 connects.

Specifications

• Insertion Color:
  Green
• Extraction Color:
  White
• Contact Type:
  AMPLIMITE Contacts Size 22
• AWG Size:
  22 – 28 AWG

Product Codes

• Mfr Part No
  91067-1
• MIL SPEC
  M81969/1-04
• ECCN
  EAR99
• MIL SPEC
  M81969/1-04
• SCHEDULE B CODE
  8203.20.6060

Documentation

• 91067-1 Datasheet
