MicroDim Dual Dimmer Control Unit | 5-35V, 10A, Ring Terminals, LL-11 Option

MicroDim Duo Dimmer Control Unit | 5-35V, 7.5A, Ring Terminals, L-11 Option

SEATON ENGINEERING

Call For Pricing
Available to order
EDMO # 9100001L11
MFR Part # 9100-001-J OPT LL-11
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MicroDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At just over an ounce the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.

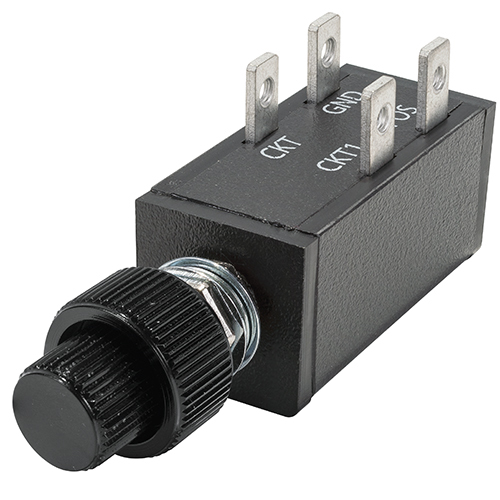

This MicroDim dual dimmer control unit (EDMO# 9100001L11) has ring terminals, a 10A max current rating, and an 11mm long bushing. It is also optimized for LED lighting.

Features

  • Dual channel MicroDim PWM dimmer with ring terminals
  • Optimized for LED lighting on both channels
  • 11mm bushing for panel thickness greater than 2.2mm
  • Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
  • Low level LED lighting control suitable for NVG applications
  • Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
  • RTCA/DO-160G Section 21 RFE Qualified
  • Comes with MaxDim unit, installation instructions, ring terminals, placard, installation template, and knobs

Specifications

  • Specification
    Weight: 1 oz
  • Dimensions:
    Panel label: 1.5 in, diameter Control unit: 0.9 x 0.9 x 2.85 in
  • Voltage range:
    5 VDC to 35 VDC
  • Max current:
    10 A
  • Operating temperature:
    -10°C to 70°C
  • Internal Temperature Protection:
    85°C
  • Storage Temperature:
    -40 to 100°C
  • Maximum Internal Temperature:
    +25°C at 10 A
