MicroDim Dual Dimmer Control Unit | 5-35V, 10A, Ring Terminals, II-6 Option
Product Description
The MicroDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At just over an ounce the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.

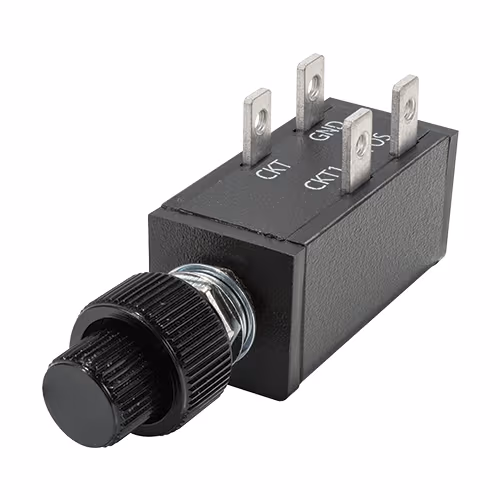

This MicroDim dual dimmer control unit (EDMO# 9100-J-II6) has ring terminals, a 10A max current rating, and a 6 mm bushing for panel thicknesses less than 2.2 mm. It is also optimized for incandescent lighting on both channels.
Features
- Dual channel MicroDim PWM dimmer with ring terminals
- Optimized for incandescent lighting on both channels
- 6mm bushing for panel thickness of 2.2mm or less
- Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
- Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
- RTCA/DO-160G Section 21 RFE Qualified
- Comes with MaxDim unit, installation instructions, ring terminals, placard, installation template, and knobs
- Made in the USA
- One year limited warranty
Specifications
Weight:
1 oz
Dimensions:

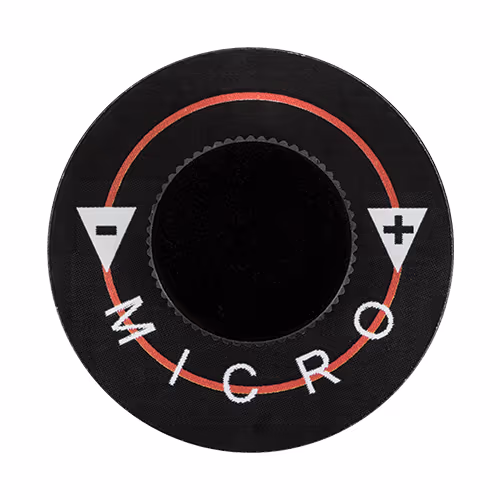

Panel label: 1.5 in, diameter
Control unit: 0.9 x 0.9 x 3.06 in
Bushing: 6 mm
Voltage Range:
5 VDC to 35 VDC
Max Current:
10 A
Operating Temperature:
-10°C to 70°C
Pot Rotation:
300° ± 7%
Storage Temperature:
-40 to 100°C
Maximum Internal Temperature:
+25°C at 10 A
Product Codes
- Mfr Part No:9100-001-J OPT II-6
- EDMO #:9100-J-II6
- Brand:SEATON ENGINEERING
- Category:Aircraft Lighting
