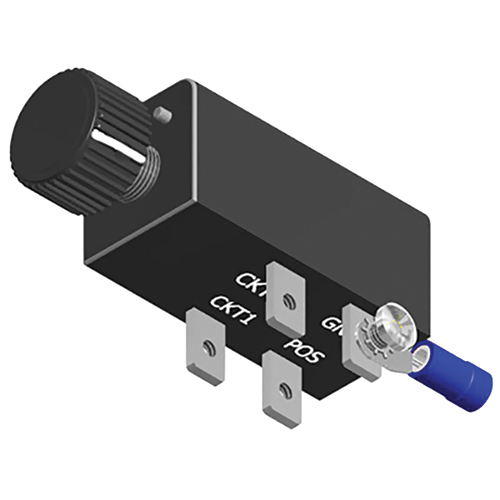

MicroPulse Landing Light Control Unit | 5-35V, 10A, Ring Terminals
Product Description
The MicroPulse landing light controller is a solid state, compact and lightweight lighting controller. It features dual channels and provides Wig Wag and multiple rate control for any combination of LED, incandescent, and HID landing lights. The MicroPulse has an eight position function mode switch.
This MicroPulse landing light control unit (EDMO# 9100-001-M) has ring terminals and a 10A max current rating.
Features
- MicroPulse Landing Light Controller with ring terminal connectors
- Greatly increases the visibility of the aircraft in both daylight and nighttime operations which improves the safety of the flight
- Compact, lightweight, powerful, solid state reliability to give that Wig-Wag effect
- No outboard heat sinks or rheostats
- Works with all major brands of lights
- Gives the operator complete control over his landing light and/or taxi light
- Many setting to choose from
- X – both circuits are off
- S – Starboard/Right on only
- P – Port/Left on only
- S+P – Both circuits on
- A44 – Alternate at 44 PPM (STD)
- B44 – Both flash at 44 PPM
- A88 – Alternate at 88 PPM
- A120 – Alternate at 120 PPM
- RTCA/DO-160G Qualified
- Comes with MicroPulse unit, installation instructions, spade terminals, placard, drill guide, and knob
Specifications
Weight:
1 oz
Dimensions:
Panel label: 1.5 in, diameter
Control unit: 0.9 x 0.9 x 2.85
Voltage range:
5 VDC to 35 VDC
Max current:
10 A
Operating temperature:
-10°C to 70°C
Internal Temperature Protection:
85°C
Storage Temperature:
-40 to 100°C
Maximum Internal Temperature:
+25°C at 10A
Product Codes
- Mfr Part No:9100-001-M
- EDMO #:9100-001-M
- Brand:SEATON ENGINEERING
- Category:Electrical Interconnect
