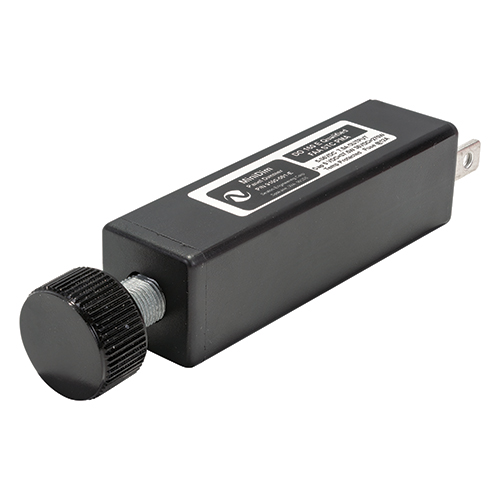

MaxDim Mini Dimmer Control Unit | 12-35V, 10A, Ring Terminals
Product Description
The MaxDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At less than an ounce the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.
This MiniDim dimmer control unit (EDMO# 9100-001-E) has ring terminals and a 10A max current rating.
Features
- Single channel MaxDim Mini PWM dimmer with ring terminals
- Controls incandescent, LED, and electroluminescent lighting
- Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
- Approved as AMOC for Cessna AD 93-24-15
- Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
- STC/PMA approved
- RTCA/DO-160E Section 21 RFE Qualified
- Comes with MaxDim unit, installation instructions, ring terminals, placard, installation template, and knob
Specifications
Weight:
1 oz
Dimensions:
Panel Label: 1.6 x 1.6 in
Control Unit: 0.85 x 0.85 x 2.98
Voltage Range:
12 VDC to 35 VDC
Max Current:
10 A
Operating Temperature:
-30°C to 85°C
Internal Temperature Protection:
85°C
Storage Temperature:
-40 to 100°C
Maximum Internal Temperature:
+25°C at 10A
Product Codes
- Mfr Part No:9100-001-E
- EDMO #:9100-001-E
- Brand:SEATON ENGINEERING
- Category:Electrical Interconnect
