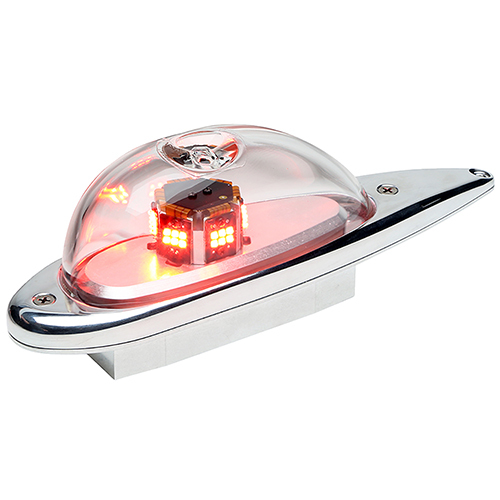

90724 Series LED Anti-Collision Light | Upper 8-hole Mount

Product Description

The 90724 Series self-contained, Anti-Collision Light combines solid state circuitry with LED lighting technology. The result is these anti-collision lights have no moving parts, no EMI/RFI, no inrush current spikes, and crisp on/off cycles. Several models are available to provide compatibility with existing mounting patterns and profiles which eliminate the need to alter the aircraft.

This 90724 Series anti-collision light (EDMO# 9072418) has an upper 8-hole mounting pattern and operates on 28 VDC.

Specifications

• Power Consumption:
  0.45 Amps @ 28 VDC
• LED Color:
  Aviation RED
• Weight:
  1.8 lb (816 g), unless otherwise noted
• Exposed Height:
  2.70 in (69 mm)
• Lens Color:
  Clear glass
• Replaces:
  Whelen: 90044 Series and Grimes: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
• Approvals:
  STC: None FAA TSO-C96a Class III

Product Codes

• Mfr Part No
  01-0790724-18
